X5S Extruder mount
cults3d

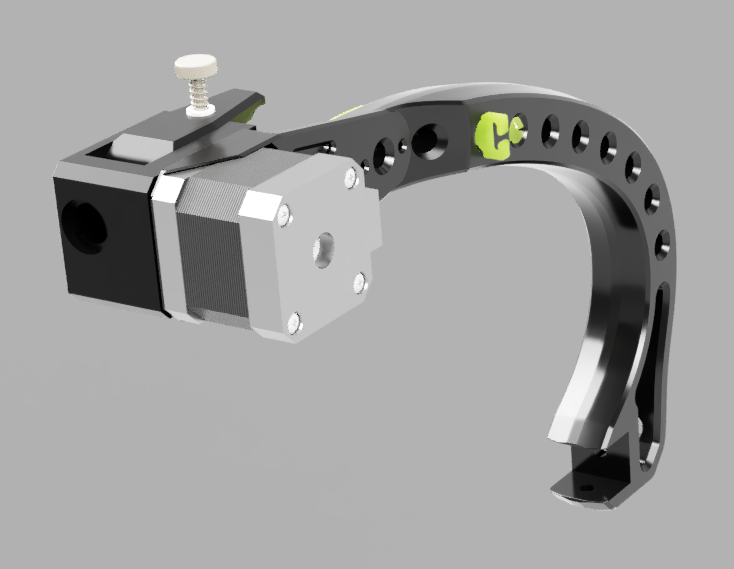

A extruder mount i slapped together for my X5S, it's made to work with the stock drag chain mounting height. This moves the extruders in almost to the bed center and wil result in a bowden length of somthing close to 320mm,,- It's also got mounting locations for a filament sensor for those who use that, and an .STEP of the filament sensor mount blank so you can make your own (the green part in the picture). I will upload the ones i make as time goes. Changelog: 22 March 2020: PTFE & Wire clips, some handy clips to aid the PTFE tube and wires down the mount.. After printing the clips heat the "legs" a little bit with a lighter at the base and spread them so that they grip better inside the holes of the extruder mount. 18 March 2020: Version 2.3, a slight rework that makes a little less bulky around the stepper mount and some tweeks that should make it a little easier to print. Also added some visual elements to make it more pleasing to look at.
