X Carriage 50mm horizontal

prusaprinters

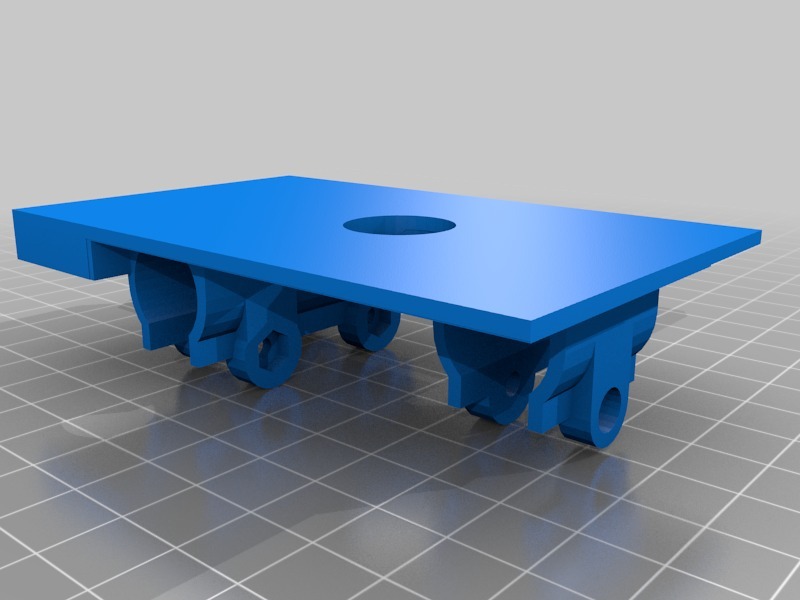

<p>50mm horizontal X Carriage with E3D v6 Hot end mount.</p> <p>There is an E3D v6 fan shroud:</p> <p>E3D v6 Hot end mount, Fan shroud (This has caused issues on TinkerCAD not able to upload files) and needs work, OK; too big a file but even if made smaller still fails to upload to TinkerCAD.</p> <p>I've about given up trying to get TinkerCAD to upload for a fix.</p> <p>have added two new files { Bigger Blow BLTouch Side E3d v6 Two Fan ring.stl and Bigger Blow Cable Side E3d v6 Two Fan ring.stl ). These have a deeper air ring design that should allow greater air flow round and through the gap in that ring. So why because you can turn air flow down, using PWM, but not increase it from the maximum. These two files have not been tested yet. These two Bigger Blow files made needed some work before 3D printing.</p> <p>IMPORTANT!!! :-</p> <p>These two files have caused me problems printing, even though they have been repaired the just do not print well for me. It appears to be a definite file issue and not a 3D Printer problem:-</p> <p>E3D_v6_Two_fan_left_side.stl</p> <p>E3D_v6_Two_fan_right_side.stl</p> <p>The earlier two files did print well and are in use, whether or not having these fans on the PLA print helps I can not say 100%:-</p> <p>Hot_End_BLTouch_side.stl</p> <p>Hot_End_Cable_side.stl</p> <p>So No real testing of all parts and will need some work and redesign.</p> <p>This build is baised, remixed, from Techtiptricks E3D V6 Extruder Mount.</p> <p>I would like to acknowledge Techtiptricks E3D V6 Extruder Mount</p> <p>This print is a remix of this.</p> <p> <figure class="media"> <oembed url="http://youtube.com/watch?v=t_fsZ7N-CrQ"></oembed> </figure> </p> <p>and remix of :- <a href="https://www.thingiverse.com/thing:1479078">https://www.thingiverse.com/thing:1479078</a></p> <p>Play List on YouTube:- <a href="https://www.youtube.com/playlist?list=PLUqt0sTiXUDfYbfrTFH6XhXV4E0Dv2eE6">https://www.youtube.com/playlist?list=PLUqt0sTiXUDfYbfrTFH6XhXV4E0Dv2eE6</a></p> <p>Please note the video blowing test video "E3D v6 Two Fan Ring blowing fan Paper Test" shows an older E3D v6 mounting design:</p> <p>These two files are</p> <p>Hot_End_BLTouch_side.stl</p> <p>and</p> <p>Hot_End_Cable_side.stl</p> <p>"BLTouch" so called because I use a BLTouch</p> <h3>How I Designed This</h3> <p><strong>TInkerCAD, with problems</strong></p> <div><p>TInkerCAD, with problems</p></div> <p class="detail-video"> <figure class="media"> <oembed url="https://www.youtube.com/embed/YNWsZ59fIng?list=PLUqt0sTiXUDfYbfrTFH6XhXV4E0Dv2eE6"></oembed> </figure> </p> Category: 3D Printer Parts
