WZ5005 Power supply

prusaprinters

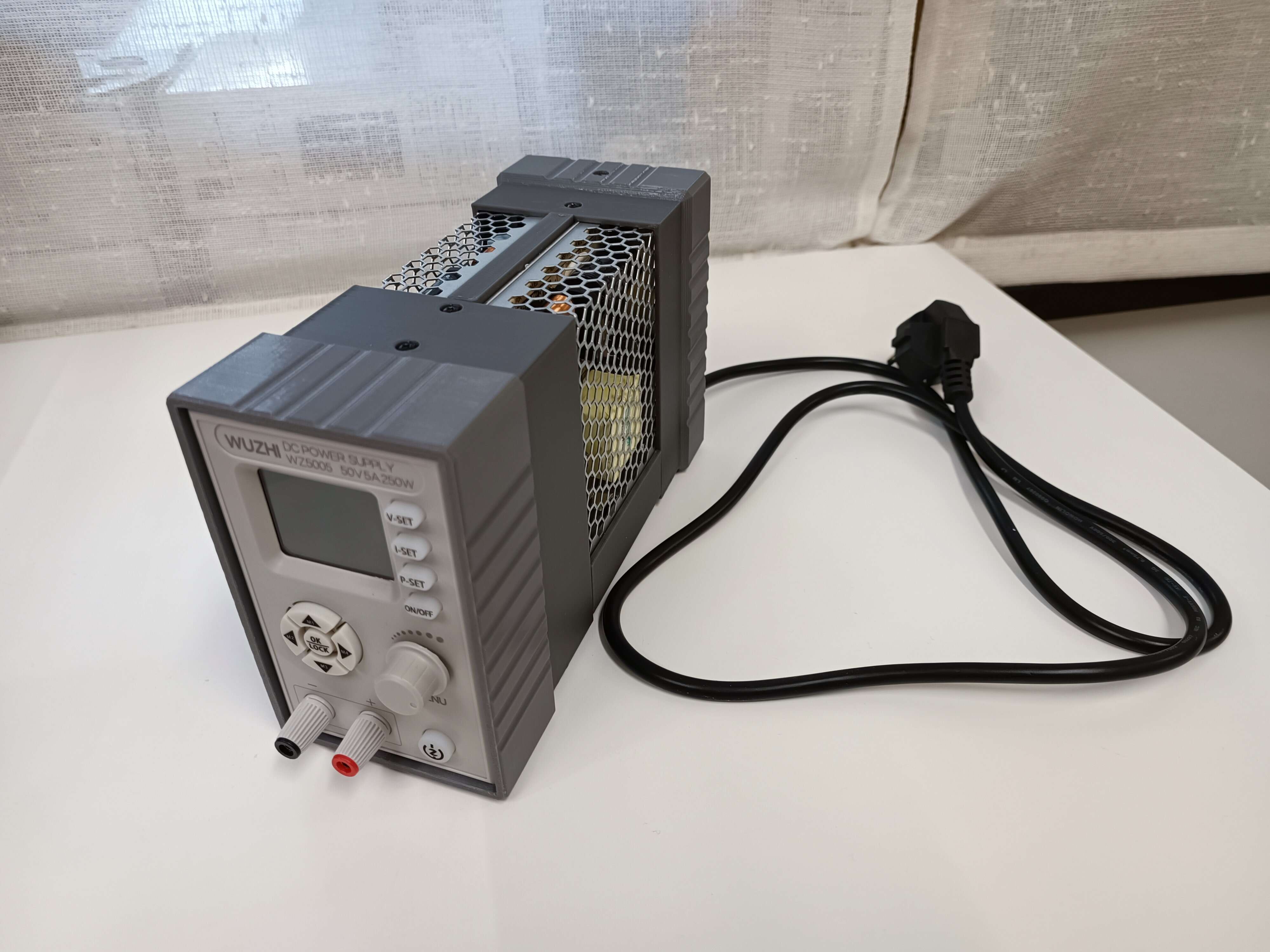

<p>WZ5005 power supply box.</p><p>If you are unfamiliar with the mains supply voltage, consult a qualified electrician.</p><p>Both power supplies are Meanwell LRS-100-24 adjusted to 27v. connected in series a total of 54v.<br>A choke filter can optionally be placed between the Meanwell and the VZ5005 to filter the power supply.</p><p>All parts are oriented for printing.<br>Supports are needed only for the front panel.</p><p>The screws are DIN7891F for plastic:<br>3x10mm 4pcs. for the front panel<br>3x10mm 4pcs. for the back panel<br>3x8mm 4pcs. for both power supplies<br>3x10mm 2 pcs for the clip of the power cable</p><p>Rubber feet 11x9x6mm are optional because the box has plastic feet.</p><p>WZ5005 &nbsp; &nbsp; &nbsp; https://www.aliexpress.com/item/1005001786782572.html?spm=a2g0o.9042311.0.0.27424c4dsJg1fX and many other sellers</p><p>Screws &nbsp; &nbsp; &nbsp; https://www.aliexpress.com/item/1005003330377202.html?spm=a2g0o.9042311.0.0.4a034c4d35fmBj</p><p>Rubber feet &nbsp;https://www.aliexpress.com/item/32993100722.html?spm=a2g0o.9042311.0.0.27424c4dnUV7g4</p><p><br>PS. In fact, I was surprised at how well the 35 euro power supply worked. Good for general use.</p>
