WU TANK MAX V2 - 5 & 6 inch freestyle frame

prusaprinters

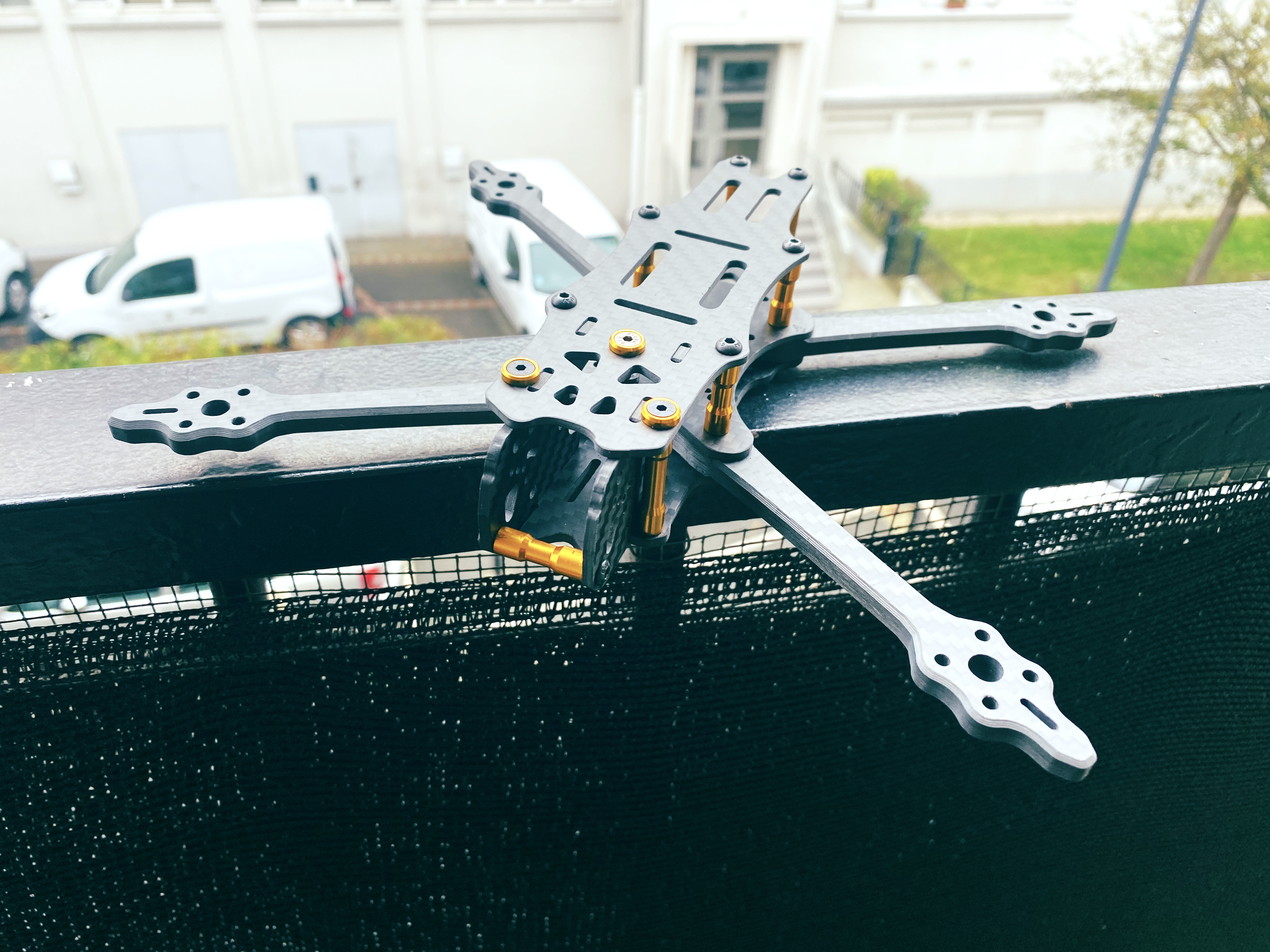

<p>Reach me on social medias for questions, news and support [<a href="https://www.instagram.com/ledrone.club/">Instagram</a>] [<a href="https://www.facebook.com/ledrone.club">Facebook</a>] [<a href="https://www.youtube.com/c/ledroneclub">YouTube</a>]</p><p>If you like my work you can [<a href="https://ko-fi.com/ledroneclub">support me via ko-fi</a>]</p><p>------</p><h5>Design updates</h5><ul><li>Nov. 22 2022 :&nbsp;<ul><li>Added a gopro session5 28deg angle mount.</li><li>Added a DJI O3 air unit cam plate option. Those work only for the V3 as it's shorter than other cams.</li></ul></li><li>Nov. 21 2022 : added some more accessories.</li></ul><h4>Project Introduction</h4><p>This is a redesign of the Wu Tank Max frame with the following improvements :</p><ul><li>Added support for Walksnail Avatar VTX at the rear.</li><li>Lighter than V1 (by a good 20g).</li><li>Changed central standoffs layouts to give more room at the center of the frame.</li><li>Added toilet tank battery mount cutouts.</li></ul><p>Note that only the camera plates are the same as in the V1, all the other frame parts are different. All the accessories from the V1 will work on that one too except for the gopro camera mount (a new one is provided here.</p><h4>Kudos</h4><p>GoaFPV for the original design demand, <a href="https://www.instagram.com/rookiefpv/">Ralf Maigler (RookieFPV)</a> for lots of inputs, great accessories, <a href="https://www.instagram.com/mata_fpv/">Mauri Mata FPV</a> who is super willing to test the frame and requested the toilet-tank battery mount.</p><h4>Frame Specs</h4><ul><li>5" arms : WideX Layout (arms are at 33° angle). Supports up to 5.2" props</li><li>6" arms : DeadCat Layout (front arms at 15°, rear at 45°).</li><li>16x16mm M3 motor mounts (from 22xx to 25xx at least)</li><li>Central mount supporting 20x20 (M3), 25.5x25.5 (M2) and 30.5x30.5 (M3) patterns for &nbsp;electronics</li><li>Rear mount supporting 20x20 and 25.5x25.5 electronics (Basically DJI VISTA, O3 Air-Unit and Caddx Avatar/Walksnail VTX or anything you can come with in that sizes)</li><li>6mm thick arms</li><li>Reinforced front (2.5mm front and cam plates, 20mm between plates)</li><li>No electronics / arms interference, the electronics mounts doesn't share screws with the arm mounts.</li><li>DJI O3 Air unit compatibility through specific camera plates</li></ul><h4>Mounting hardware</h4><p>Here's the list of mounting hardware needed to assemble the frame :</p><ul><li>5 x M3 pressnuts (4 on the rear plate for arms assembly + 1 under the top plate for the gopro mount)</li><li>4 x <a href="https://betafpv.com/products/m2-clamping-nuts">M2 BetaFPV Clamping nuts</a> (on the rear 20x20 or 25.5x25.5 mounts to easily install the Vista/O3/Walksnail VTX)</li><li>4 x M3 12mm steel screws (inner arms attach)</li><li>4 x M3 16mm steel screws (outer arm attach + standoffs)</li><li>11 x M3 6mm steel screws (for the 20mm standoffs, rear and front + 1 for the rear of the gopro mount)</li><li>4x M3 8mm steel screws (gopro mount and front standoffs, should work with 8mm)</li><li>7 x 20mm M3 standoffs (6 at the rear, 1 in the front on the cam plates)</li><li>2 x 28mm M3 standoffs (at the front)</li><li>16 x M3 8mm steel screws (for the motors)</li></ul><p>Note that if you go with a frame from CNCMadness/CNCDrones the mounting hardware is (can be) provided.</p><h4><br>Getting the frame cut</h4><p>My recommended places are [<a href="www.cncmadness.com">www.cncmadness.com</a>] (CA/US/Worldwide) and [<a href="www.carbon-posten.de">www.carbon-posten.de</a>] (EU/Germany) or [<a href="https://www.facebook.com/profile.php?id=100083354461958">CNC DRONE 91</a>] (EU/France). Great quality cuts and fair pricing/delivery time.</p><p>you need to send the provided DXF files with the following instructions :</p><ul><li>4 x arms : 6mm carbon fiber (4 x the same for 5", for 6" you need 2 front and 2 back arms, they're different)</li><li>1 x front plate : 2.5mm carbon fiber</li><li>2 x cam plates : 2.5mm carbon fiber (chose between the normal ones or O3 version according to your needs)</li><li>1 x rear plate : 2mm carbon fiber&nbsp;</li><li>1 x top plate : 2mm carbon fiber</li></ul><p>You can optionally ask for countersunk holes on the rear of the top plate and have your screws sitting flush.</p><p>Feel free to ask me for directions and help.</p><p>&nbsp;</p><h4>Installing the VTX (Vista, Walksnail or whatever 20x20 or 25.5x25.5 VTX)</h4><p>The rear 20x20 and 25.5x25.5 mount is intended to be used with M2 pressnuts that go under the rear plate. So you just have to screw your VTX using M2 screws coming from the top. In the provided files you'll find some VTX washers that are 2.2mm tall and will allow you to give some clearance for air and wires under the VTX. I recommend M2 16-18mm screws for a DJI Vista and probably 14-16mm for Walksnail.</p><p>Check the pictures provided, you'll get the idea quite easily.</p><p>&nbsp;</p><h4>My build</h4><p>I use the following gear on my main flyer :</p><ul><li>[<a href="https://fpvcycle.com/products/fpvcycle-5-motor-choose-options">FPVCycle 25mm 1880 Kv motors</a>] (do you a treat and get some of those amazing motors)</li><li>Gemfan 5226/HQProp Ethix S3/S4 props</li><li>AIKON mini stack (F7 fc)</li><li>DJI Vista</li><li>TBS Crossfire RX</li><li>Ovonic 1000 mAh 6S and Tattu 1400 mAh 6S lipos</li><li>GoPro Session 5</li></ul><p>I would also recommend RCINPower Smoox 2306plus 1880 Kv motors as an alternative.</p>
