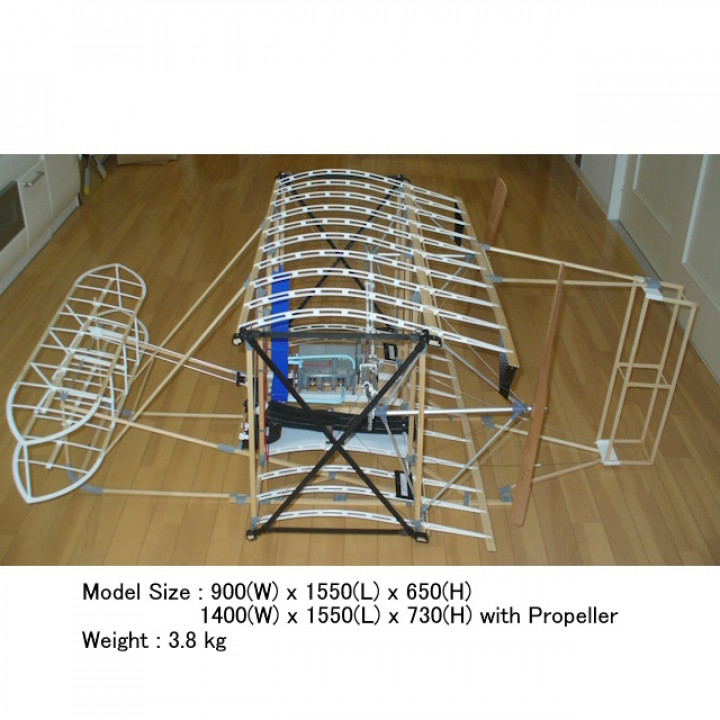

Wright Flyer 1903, Power Plant + Elevator and Rudder

myminifactory

I made the Power Plant Model as “Wright Flyer 1903, Power Plant” in 2021.3.1To this model, I added “Elevator” and “Rudder” to the "Power Plant" I made previously. A. The features incorporated in the model are as follows;　① Elevator : Angle Changeable 　　　・Elevator (New)　　　・Elevator Frame (New)　　　・Pitch Control Wheel, Hands of Pilot (Modified)　② Rudder : Angle Changeable　　　・Rudder (New)　　　・Rudder Frame (New)　　　・Trailing Wing (Renew)　　　・Propeller shaft support reinforcement tool (Added)　　　・Warp Wing Wiring (Partial+Tool) and Bell Cranks (New)　B. Assembly Manual (PDF format, total 21 pages) The detail assembly manual including "Parts-List", "After printing treatment" and "Assembly procedure" are prepared based on "Standard Skill (Filing, Drilling, Tapping and painting)". C. STL files “ws” of last 2 digits of file name means “With Support” special designed. Total STL files are 46 items including the stand and tools. D. Purchase Parts Information; - Aluminum Tubes ・・ φ3, 5 - Piano Wire ・・ φ1 (300mm Length wire is used) - Wood Bar ・・ Rectangle (2x10, 3x15, 5x10), Square (3x3, 6x6) - Screws, Nuts, Washer ・・ M1.4, M2, M3 ・・Adjust screw length by your experience. - Screws to wood parts are determined by your experience. E. Total Net Print Time: Approx. 60 HR - (Estimated as case of PLA, 0.4mm Nozzle, 0.2mm Layer Height, 40% infill and No raft and support) Note: When at actual print, each parameter may be adjusted by your experience. F. Printing settings Raft, Support, Layer Height, Infill: Depending on your experience. My models were printed by "idbox" using with 0.4 nozzle, 1.75 PLA. [IMPORTANT NOTICE]This model was designed based on the "Power Plant" I made myself, so there may be dimensional differences between it and the "Power Plant" you made. I strongly recommend that you only purchase this if you can resolve the difference yourself. FDM printer with the size (150 (W) x130 (L) x100 (H)) or larger must be required to make this model.Model size=900(W) x 1550(L) x 650(H: Wing), 730(H: with Prop), Weight: 3.8kg (including Power Plant) I do hope your patience and success.
