water pipe elbow

prusaprinters

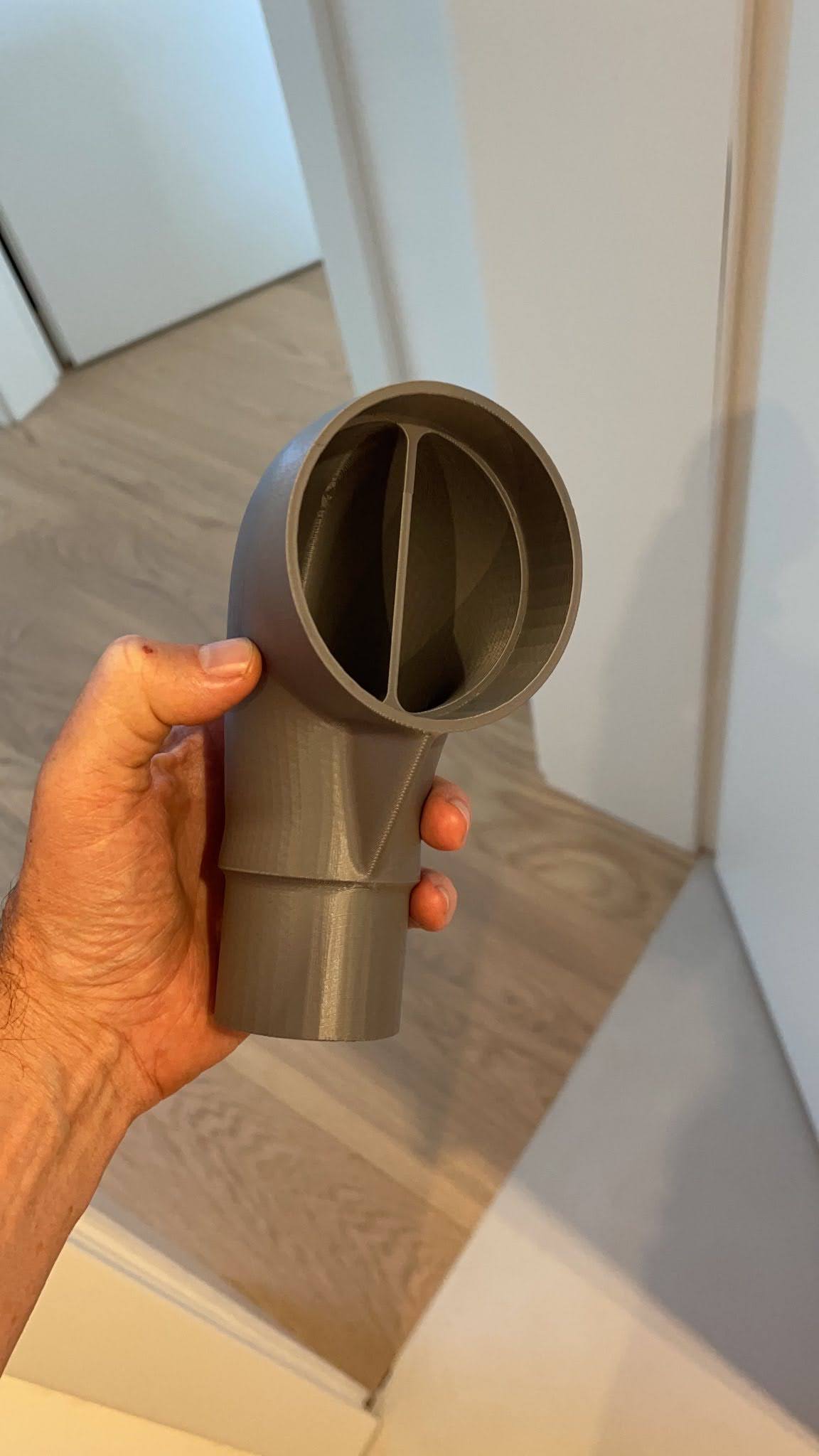

<p>During house renovation, a rainwater downspout (PE-pipe with OD 78mm) from the roof of the gutter had to be rerouted.</p><figure class="image image_resized image-style-align-center" style="width:50%;"><img src="https://media.printables.com/media/prints/220754/rich_content/88d4057d-f760-40e2-9d48-d7047b09662d/signal-2022-05-22-17-27-00-060.jpg#%7B%22uuid%22%3A%223fa9e501-44b7-437b-b9e8-5bfbaaa2ab2a%22%2C%22w%22%3A1536%2C%22h%22%3A2048%7D"></figure><p>A 90-degree elbow piece was needed that fits in the limited space and reduces the pipe OD to a standard 50mm HT pipe which is not available on the market.</p><figure class="image image_resized image-style-align-center" style="width:50%;"><img src="https://media.printables.com/media/prints/220754/rich_content/cb4ed422-8046-4a5e-8f9d-385c1821b41c/signal-2022-05-28-09-09-52-292.jpg#%7B%22uuid%22%3A%2279ae144d-5372-4ccb-bae9-25955fbcc61d%22%2C%22w%22%3A1152%2C%22h%22%3A2048%7D"></figure><p>This unique slip-on design of the elbow allows for a connection onto the downspout. Any standard 50mm HT-pipe can be slipped onto the other side of the elbow.<br>Its recommended to seal the OD78 connection with silicone.</p><figure class="image image_resized" style="width:50%;"><img src="https://media.printables.com/media/prints/220754/rich_content/123b8bbc-baf3-48d4-ac2b-cf56b7e7cfd7/signal-2022-05-28-22-17-07-945.jpg#%7B%22uuid%22%3A%225f788729-d611-433d-818f-970c11feeba8%22%2C%22w%22%3A1152%2C%22h%22%3A2048%7D"></figure><p>If anyone needs something similar, send me a message. I can modify the design to your needs.</p>
