Wanhao i3 Y Axis Pulley Bracket (Strengthened)

prusaprinters

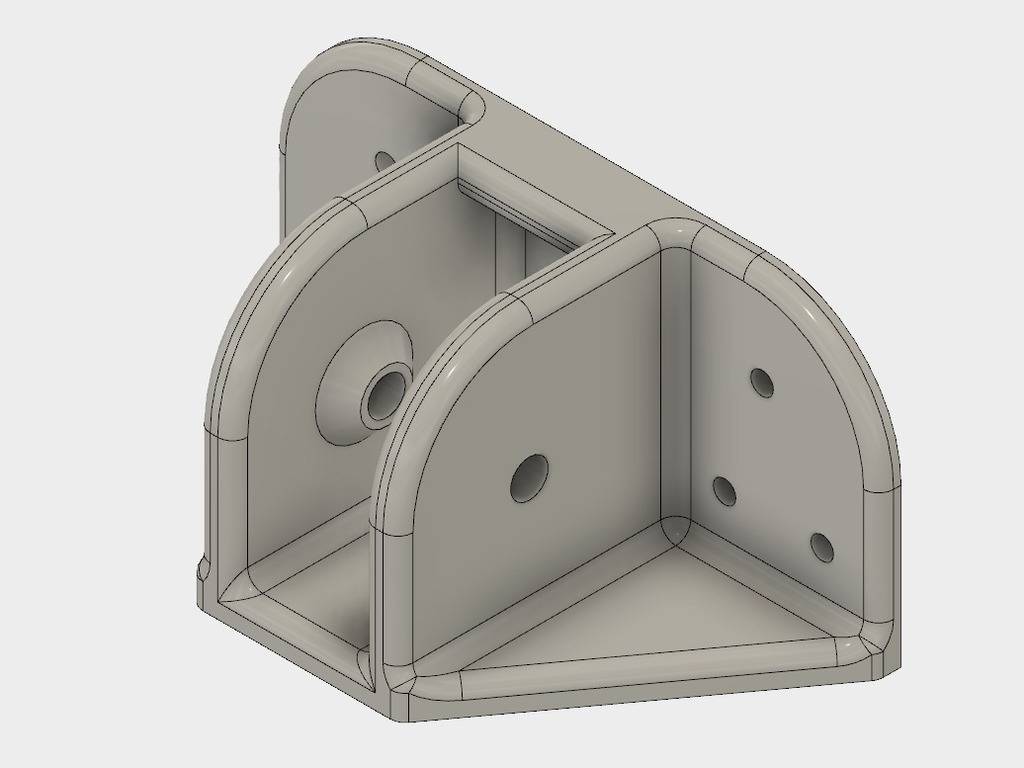

<p>This is a replacement bracket for the Y axis pulley on the Wanhao Duplicator i3 and clones.</p> <p>The stock bracket can flex during print, as well as bend over time, creating wavy lines on the print surface and added noise.</p> <p>This design is based on Amkza's, but is modified to allow printing standing up, hence the extra strength. Various bits and pieces are also thickened and filleted.</p> <p>Many thanks to Amkza for sharing his design.</p> <p>Compatible with the front Y brace from Azza's Z brace mod.</p> <p>UPDATE - Version 1.1 with more clearance for the pulley bearing.</p> <h3>Print Settings</h3> <p><strong>Supports:</strong></p> <p>No</p> <p class="detail-setting resolution"><strong>Resolution: </strong> <div><p>Thick layers. Recommended 0.28mm.</p></div> <p><strong>Infill:</strong></p> <p>High infill. 50% or more.</p> <p><br/> <p class="detail-setting notes"><strong>Notes: </strong></p> </p><div><p>The holes may need cleaning up with a drill.</p> Don't forget that holes will need to be drilled on the printer - and yes it's well worth doing. <p>See Amkza's original design for more instructions, as well as a drill template.</p> <p>Amkza's spacers are not needed with this remix.</p> <p><strong>Required:</strong></p> <p>1x bracket (this STL)</p> <p>1x drill template (optional, from Amkza, alternatively you can just use this bracket as a drill template)</p> <p>1x bearing pulley (the stock one)</p> <p>1x M5 35mm screw</p> <p>1x M5 nylock nut (the stock one)</p> <p>6x M3 10mm screw</p> <p>6x M3 nut</p> <p>12x M3 washer (optional)</p> </div></p> Category: 3D Printer Parts
