Wall mount box for Nedis WiFi Smart Switches

prusaprinters

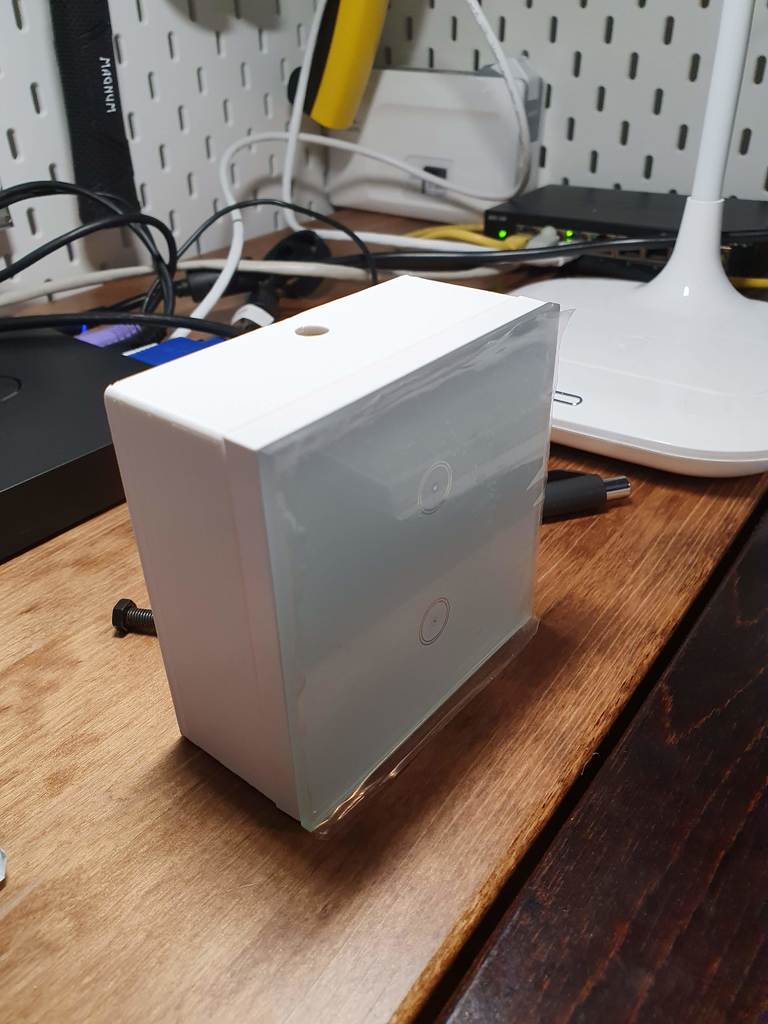

<p>A wall mount enclosure for Nedis Wi-Fi Smart Switches. Attaches to wall with 3mm wood screws. May need more substantial screws, but will update once tested. Holes for cable (6.2mm) entries at the top and bottom and a larger hole at the rear of case. Tested to fit the WIFIWS20WT, but should fit the single switch model as well. Maybe even other similar switches?</p> <p>Uses M3 nuts to fasten the Smart Switch to the case. Use a bolt to pull the nut into the holder slots.</p> <p>Not yet tried the case in action. But it ought to work!</p> <h3> Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>Creality</p> <p><p class="detail-setting printer"><strong>Printer: </strong> <div><p>CR-20</p></div><strong>Rafts:</strong></p> <p>No</p> <p><p class="detail-setting supports"><strong>Supports: </strong> <div><p>No</p></div><strong>Resolution:</strong></p> <p>0.2</p> <p><p class="detail-setting infill"><strong>Infill: </strong> <div><p>20%</p></div><br/> <strong>Filament:</strong><br/> 3DJake rPLA White <br/> <p class="detail-setting notes"><strong>Notes: </strong> </p><div><p>Prints nicely without any supports. </p></div></p> </p></p></p> Category: Electronics
