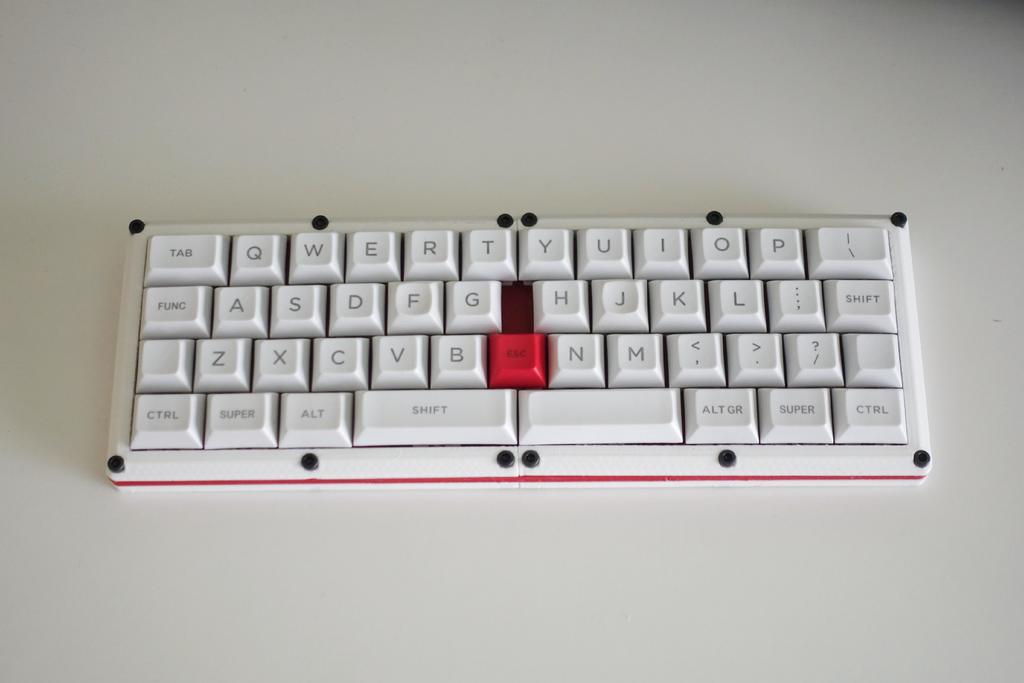

Wakizashi 40 Keyboard

prusaprinters

<h3>Required parts</h3><ul><li>M3 12mm x 6</li><li>M3 16mm x 6</li><li>M3 nut x 12</li><li>Microcontroller e.g. Arduino Pro Micro, Teensy2.0…</li><li>(Optional) USB breakout board to glue to the case</li><li>45 x keyswitch</li><li>2 x 2u plate mount Cherry stabiliser</li><li>45 x diodes e.g. 1N4148</li></ul><h3>Printing</h3><p>Flip the plate pieces upside down so there are no overhangs. Make sure the pieces are flat on the print bed.</p><h3>Wiring</h3><figure class="image"><img src="https://media.prusaprinters.org/media/prints/128575/rich_content/ae36eb39-4b23-4267-9e00-7c79954c0de0/large_display_w40_wiring_128575.png#%7B%22uuid%22%3A%228fd8adbf-2976-4177-bb99-c78b05761563%22%2C%22w%22%3A847%2C%22h%22%3A301%7D"></figure><h3>Firmware</h3><ul><li><a href="https://github.com/xia0/keeb_files/tree/main/wakizashi40/binaries">Compiled firmware</a> (<a href="https://github.com/qmk/qmk_firmware/tree/develop/keyboards/handwired/wakizashi40">source</a>)</li><li><a href="https://github.com/qmk/qmk_firmware/tree/develop/keyboards/handwired/wakizashi40">VIA json</a> (File &gt; Import Keymap)</li></ul><h4>Update 2022-03-07</h4><ul><li>Fixed hole sizing to fit keyswitch better.</li><li>Added optional blocker to fill the gap in the centre of the plate.</li></ul><h3><a href="https://www.prusaprinters.org/prints/128577-clueboard-fc660m-66-mechanical-keyboard-v2">Clueboard 66%</a><img src="https://media.prusaprinters.org/media/prints/128575/rich_content/bbc785c4-b688-4e3c-a4fc-9adf25e2bd17/a281d910928aca002a1c1c5a25681d8c_display_large_12.webp#%7B%22uuid%22%3A%22710197a8-79e5-4872-be4c-372e4a37aa6f%22%2C%22w%22%3A640%2C%22h%22%3A480%7D"></h3><p><br>If you want something bigger, take a look at my 3d printed Clueboard.</p>
