Voronoi Filament Spool Holder

pinshape

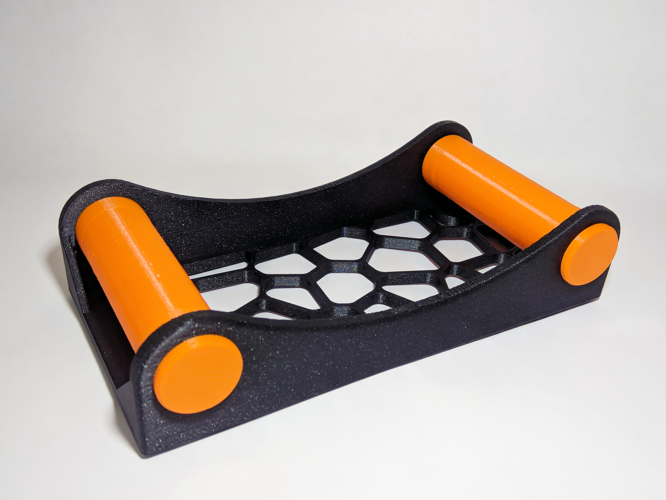

This large voronoi spool holder works with both Prusament 1KG spools and ColorFabb 750 gram spools (these are the spools I had to test). Other similar spools should work just fine too. You'll need the following 3D-printed parts: Base of the holder (1x) Rollers (2x) Pins (4x) 608ZZ bearings (4x) Assembly is quite simple. First, insert the four bearings into the two rollers. Then, align the rollers in the base one by one. Whilst holding the roller in position, press the pins through the base and into the rollers. Take a look at the cross-section view to better understand what the end result should be. You shouldn't need any glue as the pins have a press/interference/friction fit with the bearings. The same goes for the bearings and the rollers. If you've used this holder with any spool other than the ones I mentioned, please drop a comment so others know what spools work. Support If you want to support me for the designs I publish for free, consider using my AliExpress Affiliate Link when buying something from AliExpress. It doesn't cost you anything extra but helps me out a lot.
