Voron 2.4 "meshed" Skirt Set

prusaprinters

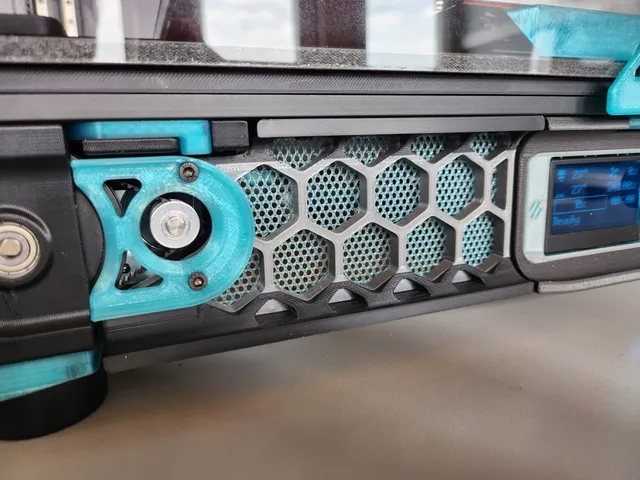

This Skirt set for the Voron 2.4R2 has some added bodies to act as a fine mesh within the big hexagons. Unlike my Voron 0.2 meshed skirts, these have individual bodies for each hexagon. I took inspiration from the V0.2r1 multibody skirts. I even increased the size of each mesh body so that you can print them with one perimeter which will be covered by the main body, giving them more stength and a neater appearance.You can still print it in one go, adding a height range modifier @ 1mm and have not top and bottom layer below that. However, utilizing the individual bodies will produce a nicer part: The slicer (PrusaSlicer at least) will recognize the multi-body part and let you set properties to each body. The easiest way is to set your top and bottom layers to 0 and walls to 1. Then modify the main part to have some top and bottom layers (I put 3 bottom, 5 top, and left the walls at 1, but would recommend 2). This way you only have to change settings for one body instead of changing it for each mesh body ;)I've added screenshots of my settings to try and make it more clear. ---Update: added Skirts for all three sizes: 250mm, 300mm, 350mm.If you're interested in other sizes, please let me know. I built a 350mm so I only modelled the parts I needed, but I'm happy to add other sizes if anyone wants them :)---Please share a Make if you print one of these and as always: Enjoy!
