Voron 2.4 Logitech C270 Mount
prusaprinters

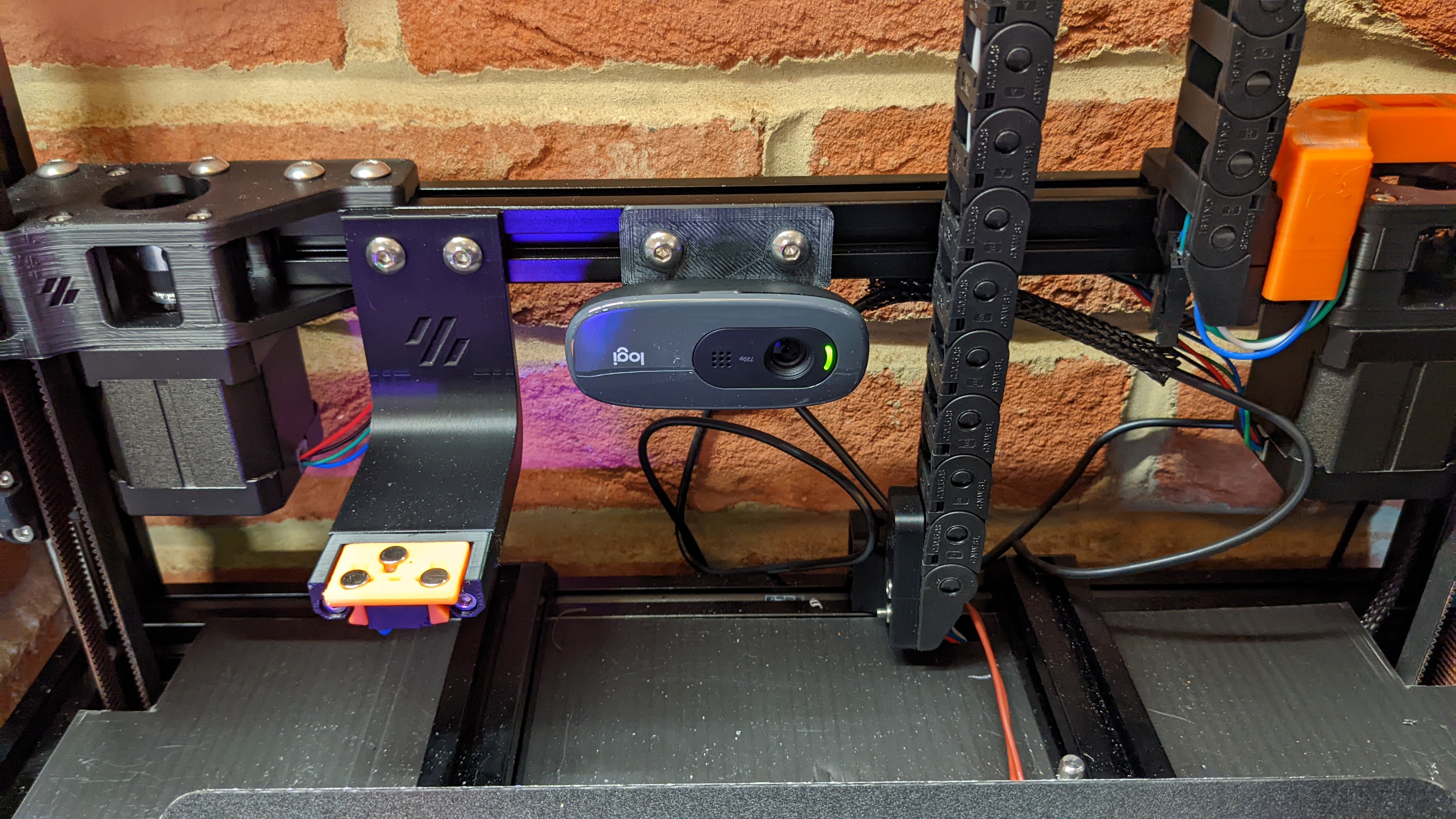

<p> The camera is angled down by 3 degrees. To use this you need a 15mm or so M3 bolt, and a couple of M5x8 bolts and T slot nuts. Remove the monitor bracket from the camera, the mount then fits in place of the monitor bracket.</p><p> </p><p>Note the camera is mounted upside down, this is to allow the camera to be situated slightly to the left on the gantry and therefore miss the Z chain but allow the lens to be in the middle of the build plate.</p><p>To print, use build plate support to support the 3 degree tilt on the camera plate.</p>
