Voron 0.1 Foldable Spool Holder

prusaprinters

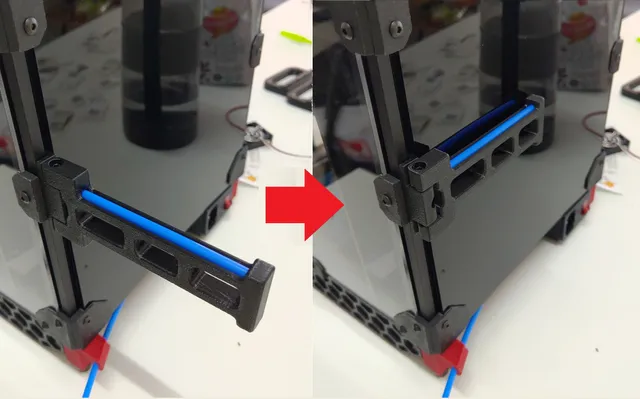

Protusion from original Voron 0 spool holder is getting in the way? Too much work to remove it and leave 1 nut hanging loose inside the frame?Then you'll need this Voron 0 Foldable Spool Holder! FeaturesKeeping the dimension & look of original spool holder as much as possible.(This means you can re-use the PTFE tube from the original spool holder)Foldable, reducing the overall dimension of Voron 0 for easy storing / traveling.Compatible with any acrylic panel thickness less than 3 mm.Easy 2-part assembly. Assembly InstructionPrint Instruction:Support (Touching BuildPlate) may be required for “Connector_V0”.No support required for “Holder_V0”.Recommended to print in default orientation.Recommended print setting:ABS / PETG40% InfillWall Count: 3Top / Bottom Layer: Minimum 4Parts Required:M3 x 35 SHCS / BHCS Screw x 1M3 x 10 SHCS / BHCS Screw x 1PTFE Tube x 2 (tubes from original spool holder is usable)[Printed Part] Connector_V0 x 1[Printed Part] Holder_V0 x 1Assembly:Remove the original spool holder. You can keep the original M3 x 12 screw, it will not be used in this assembly.Secure the “Connector_V0” onto the frame using M3 x 10. Note: Make sure that the fillet (rounded edge) is facing the acrylic!Insert PTFE tube x2 into “Holder_V0”.Place “Holder_V0” towards the “Connector_V0”. Then, use M3 x 35 as a shaft to connect the 2 parts. Do not overtighten the screw!Note: Make sure the fillet (rounded edge) of “Holder_V0” is facing acrylic too.Note: Make sure the countersunk on “Holder_V0” is facing upwards.Finally, tighten the M3 x 35 screw slightly until the folding operation of the spool holder will hold itself by slight friction (so it won't swing free and slaps around when carrying you printer!)Note: Seriously, don't overtighten the screw. It may not able to fold.Enjoy!Note: Made to support Voron 0.1, however should be able to support voron 0.2 as well.
