VOID30 - A 30% Ortholinear Keyboard
prusaprinters

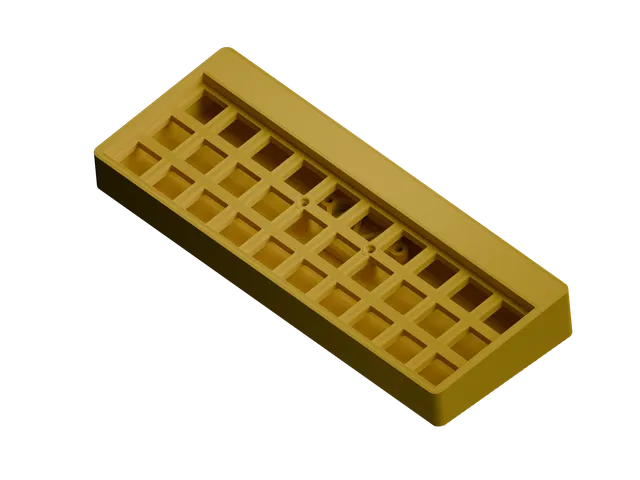

The VOID30 is a handwired 30% ortholinear keyboard that uses a Pro Micro as a controller.Two versions for the top part of the keyboard are included, one with a logo and one without it. Bill of materials Redux8 x M2x3x3.5 OD heat inserts (aliexpress)4 x M2x10 Allen head screws (aliexpress)4 x M2x6 Countersunk screws (aliexpress) Bill of materials v14 x M3x10 countersunk screws that go through the top case (tme.eu/aliexpress)4 x M3x10 allen head screws (tme.eu/aliexpress)hotglue STL mirror / QMK forkThe files are also hosted on Github, along with precompiled firmware files and a QMK fork that contains a basic keymap and experimental VIA Configurator support. More info here Updates31.01.2024 - added .step Redux models14.06.2023 - added Redux models, modular controller mounts, m2 hardware and brass inserts16.03.2020 - added a small inner fillet14.03.2020 - small adjustments to the inner guides for better fitment between the upper and lower parts of the case; increased surface area of the screw holes for the upper part of the case
