Victron 500A SmartShunt Enclosure / Cover (IP21 & IP65)
prusaprinters

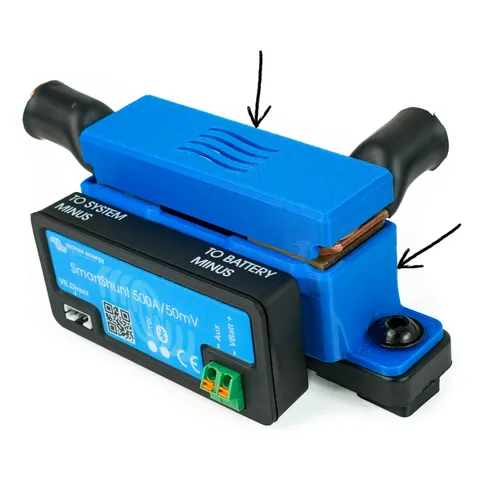

This Victron SmartShunt enclosure/cover protects against accidental short circuits and physical damage. Designed specifically for the 500A/50mV Victron SmartShunt (Bluetooth, without physical display) for a snug fit and optimal protection. Accepts wire of any gauge (AWG) coming out from the back of the shunt. Compatible withVictron 500A SmartShunt Battery Monitor (IP21)Victron 500A SmartShunt Battery Monitor (IP65)(affiliate links) Installation1. Remove the mounting screws and the wires/connectors from the shunt. Slide down the enclosure over the shunt:2. Install the mounting screws and connect the wires to the shunt:3. The cover uses friction-fit over the two M10 screws to stay in place:4. To install the cover, simply slide it over the two M10 screws: FilamentShunts can get very hot so I recommend PC (polycarbonate) for high temperature resistance. And as it turns out, Polymaker makes a nice PC with Victron-like blue color so it's a no-brainer:https://amzn.to/4aSYKY2 (affiliate link) Print Settings0.2mm layer height2 Wall loops0.5mm Outer wall 0.55mm Inner wallArachne100% Sparse InfillWith support:
