VESA-mounted Laptopstand

prusaprinters

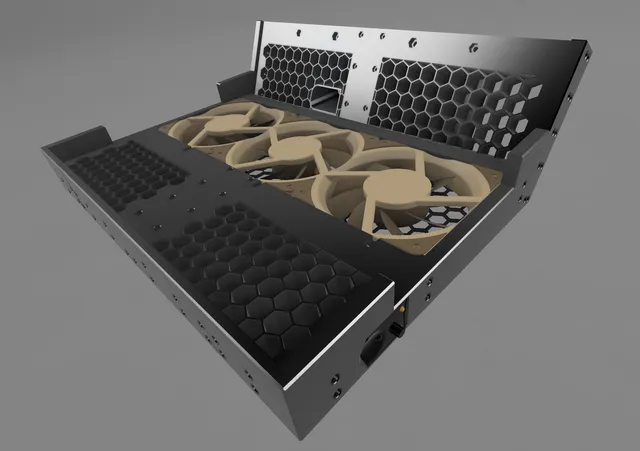

I made a VESA monitor arm mount for my laptop about a year ago. I think it's one of the things I 3d printed and use almost every day since. Easy to move away and also protects the laptop with the frame. Stays cool with 3xNoctua 120x25mm and well ventilated with honeycomb pattern throughout the frame. It is connected to a fan control so you can change the speed as much as you want. I have it almost all the time at minimum (about 300rpm) and you can't hear the fans but you can feel the flow from the side. The frame is made for the PC Specialist 15.6" recoil series. That chassis is used by many other brands but I have forgotten the name of the chassis. I added the STEP-file so you can measure screws and laptop etc. I made a space claim box as a laptop with the measurement branded on the sides. The most of the skrews on the sides are M3x14 except for top and bottom of the back they are M3x20. The front frame and the top reinforcement is M3x10. But if you want to know exactly everyone you can measure in the STEP-file. All screw hole have nuts pockets. The only other size is the VESA mount that has M4 and M5.Hope you like it.Link to the fans:                 NF-A12x25 PWM (noctua.at)Link to the fancontroller:  NA-FC1 (noctua.at)
