Vac 3 Elbows (x2)
prusaprinters

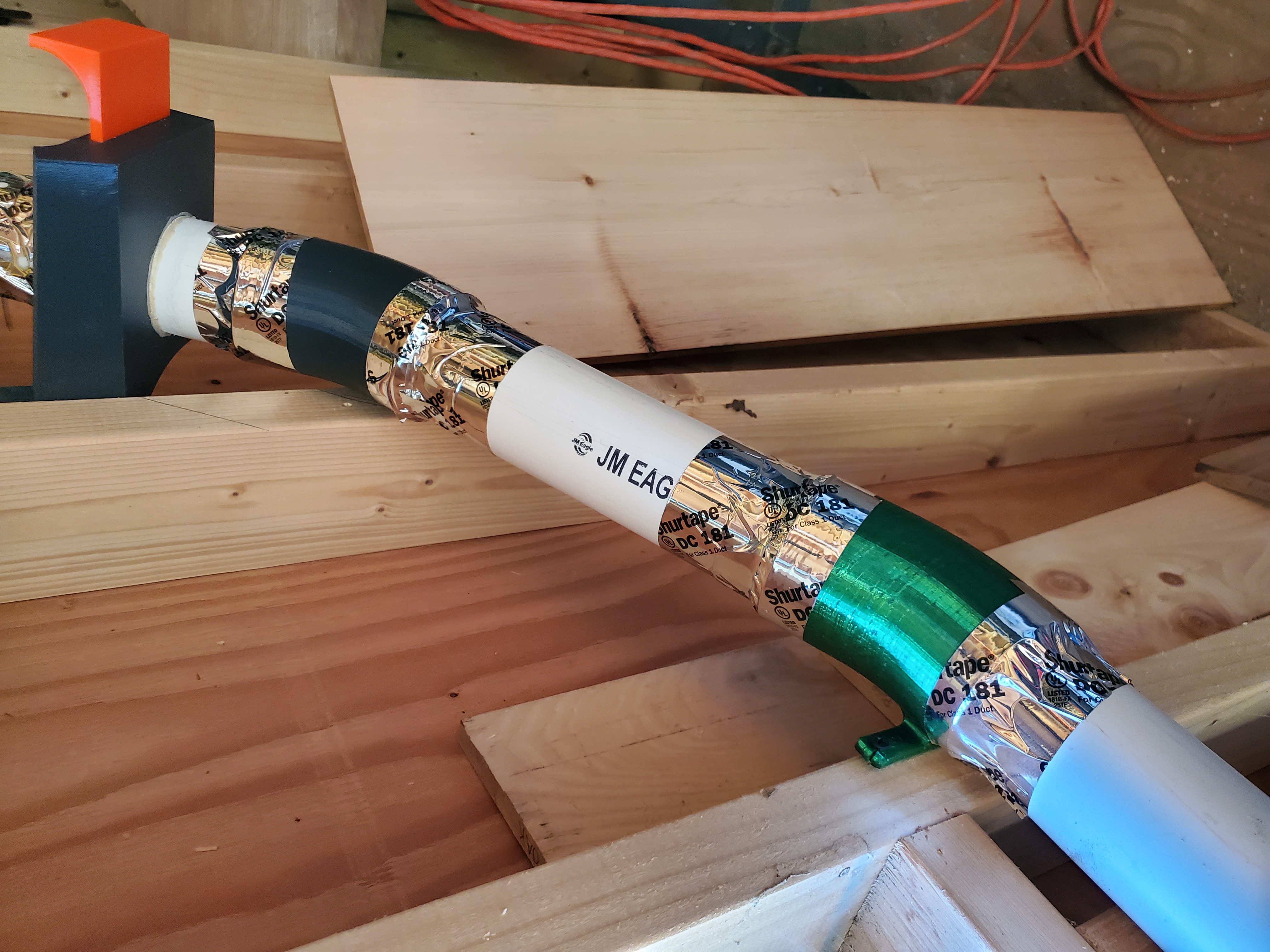

<p>These 2 Elbows bring the 3rd branch line back to being parallel with the main trunk after the line branches off the main thru my 3rd coupler. <a href="https://www.printables.com/model/230567-dust-collector-coupler-3">https://www.printables.com/model/230567-dust-collector-coupler-3</a> </p><p> It then goes under a window after coming thru the 3rd gate on its way to the Table saw.</p><p>In a system like this you want to avoid angles over 45deg and stay smaller if possible that is why I broke it into 2 elbows. The 1st is about 30deg the 2nd is about 26deg. the don't need to be perfect as there is some play</p><p> </p>
