V Slot Drilling and Taping Jigs
prusaprinters

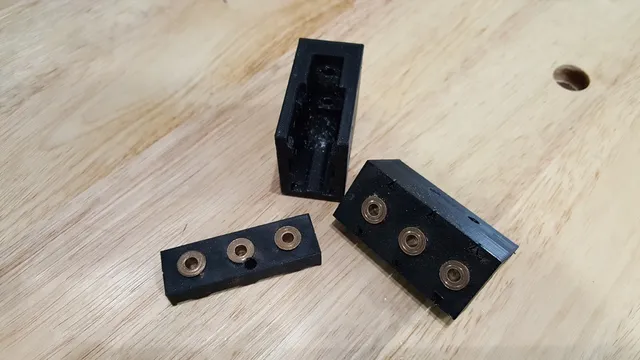

This is a set of tools that will allow you drill for blind fastening and tap the ends of V Slot aluminum (Aluminium) such as that from openbuilds.com. I needed these while building my FK-1 large format 3D Printer. (https://www.youtube.com/playlist?list=PLoJycTgmGC47H5_A7Fs0giDvwOR5HQZRE) The bushings I used for these are from Amazon and are available here: https://www.amazon.com/gp/product/B01G8XA51G/ref=as_li_ss_tl?ie=UTF8&psc=1&linkCode=sl1&tag=funking3d09-20&linkId=d94572c17b24b33c8dbe83ded11efe9e&language=en_US (affiliate link) *Note: These should be about $4.50 USD. If they are higher, you might have to wait and let them come back down. I have seen them jump up to $14 USD. A quick how-to and example video is available here: https://youtu.be/-Mqe7MNBpcA Print Settings Printer Brand: Prusa Printer: i3 MK2S Rafts: No Supports: No Resolution: 0.2 Infill: 40% Filament: IC3D PETG Black Notes: You might get by printing these in PLA. They are not under stress during use. Category: 3D Printing
