Unwrapped Icosahedron

prusaprinters

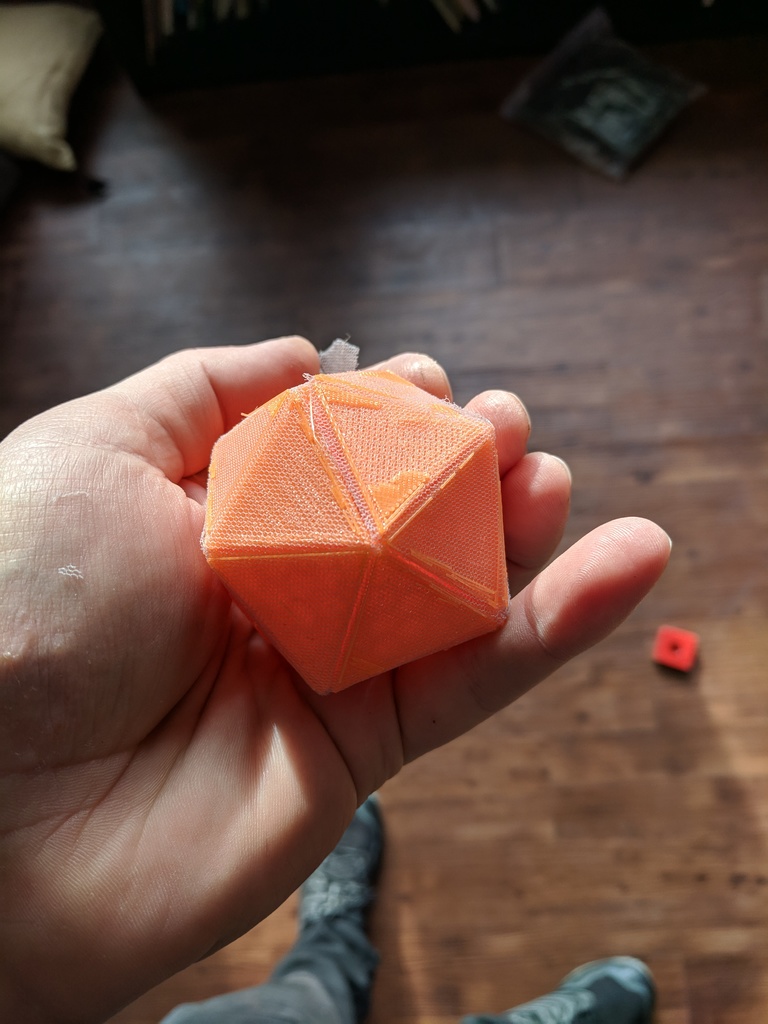

<p>This is the 2D net of an icosahedron or a 3D icosahedron unwrapped. I then added in the equivalent volume for each segment of the relative part so it can become a solid 3D object again. This is designed to have fabric inserted into the part, which acts as a hinge.</p> <h3> Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>Anycubic</p> <p><p class="detail-setting printer"><strong>Printer: </strong> <div><p>Kossel</p></div><strong>Rafts:</strong></p> <p>No</p> <p><p class="detail-setting supports"><strong>Supports: </strong> <div><p>No</p></div><strong>Resolution:</strong></p> <p>0.1</p> <p><p class="detail-setting infill"><strong>Infill: </strong> <div><p>25</p></div><br/> <strong>Filament:</strong><br/> any PLA any <br/> <p class="detail-setting notes"><strong>Notes: </strong> </p><div><p>When printing on fabric do not use a raft unless you must. The bonding between the fabric and printed material can be weaker than the connection to the raft.</p> When placing material I used a low tack, repositionable, spray adhesive. You can find this in any craft store.</div></p> <p>To get a good bond make the base 6-8 layers thick and place the sheet between layers 3-5. If you use multiple sheets leave at least two printed layers between the fabric for improved results but your experimenting may prove different. Enjoy.</p> </p></p></p> Category: Math Art
