Universal Webcam Quick Release Mount for Wanhao D6/Monoprice Ultimate

prusaprinters

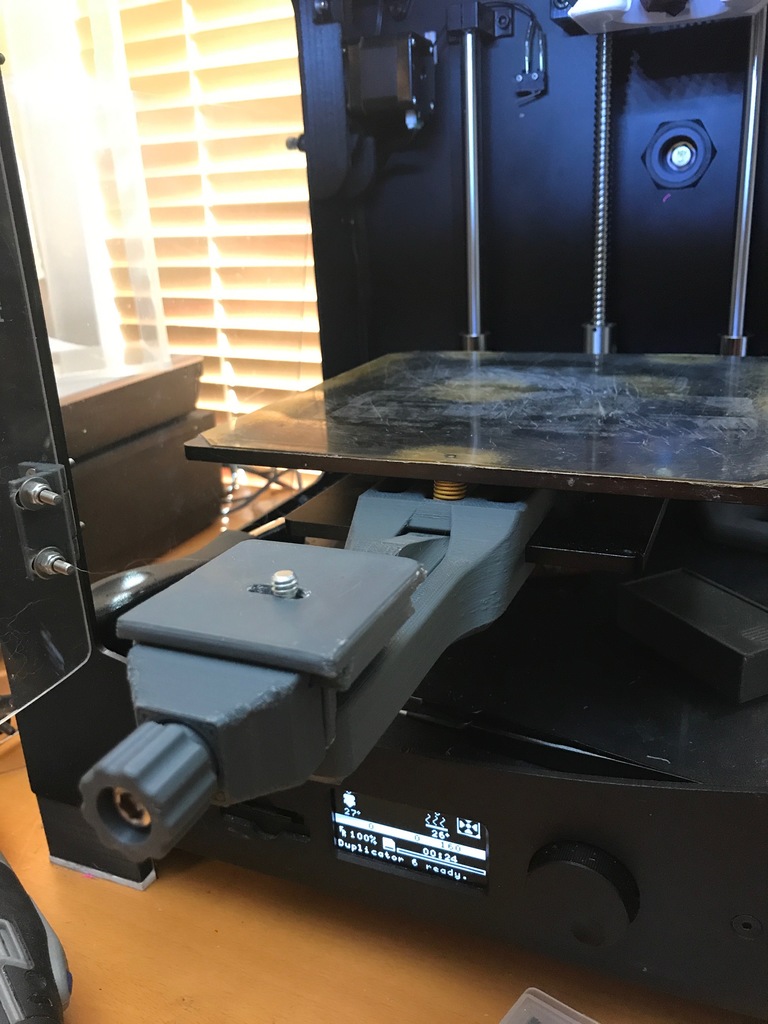

<p>A universal webcam/GoPro mount for the Wanhao D6 with a quick release. Brackets for regular 1/4-20 camera screw and one for the Logitech 910 HD cam. Made this to get quicker and easier access to the print without having to remove the whole mount. For GoPro use thing: 2489804. You can attach the Logitech 910 as shown in thing:2420692. Screw is installed as in thing:2450904</p> <p>Universal 1 V2 results in a lower profile but needs much more support to print.</p> <p>You need:<br/> 1x M6 4 cm internal hex screw, nut and washer<br/> 2x M3 2.5 cm screws<br/> 1X M4 2 cm screw nut and washer<br/> 1/4-20 photo equipment screw</p> <p>Empiricus@Dremomys</p> <h3> Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>Wanhao</p> <p><p class="detail-setting printer"><strong>Printer: </strong> <div><p>Duplicator 6</p></div><strong>Rafts:</strong></p> <p>No</p> <p><p class="detail-setting supports"><strong>Supports: </strong> <div><p>Yes</p></div><strong>Resolution:</strong></p> <p>0.150</p> <p><p class="detail-setting infill"><strong>Infill: </strong> <div><p>30</p></div></p> <p><strong>Notes:</strong></p> <p>PETG or ABS recommended for the lower part (Universal_2) as PLA will deform that close to the heat bed when it is heated up to 100C for ABS printing.</p> </p></p></p> Category: 3D Printer Accessories
