Universal telescope eyepiece smartphone mount for shorter eyepieces

prusaprinters

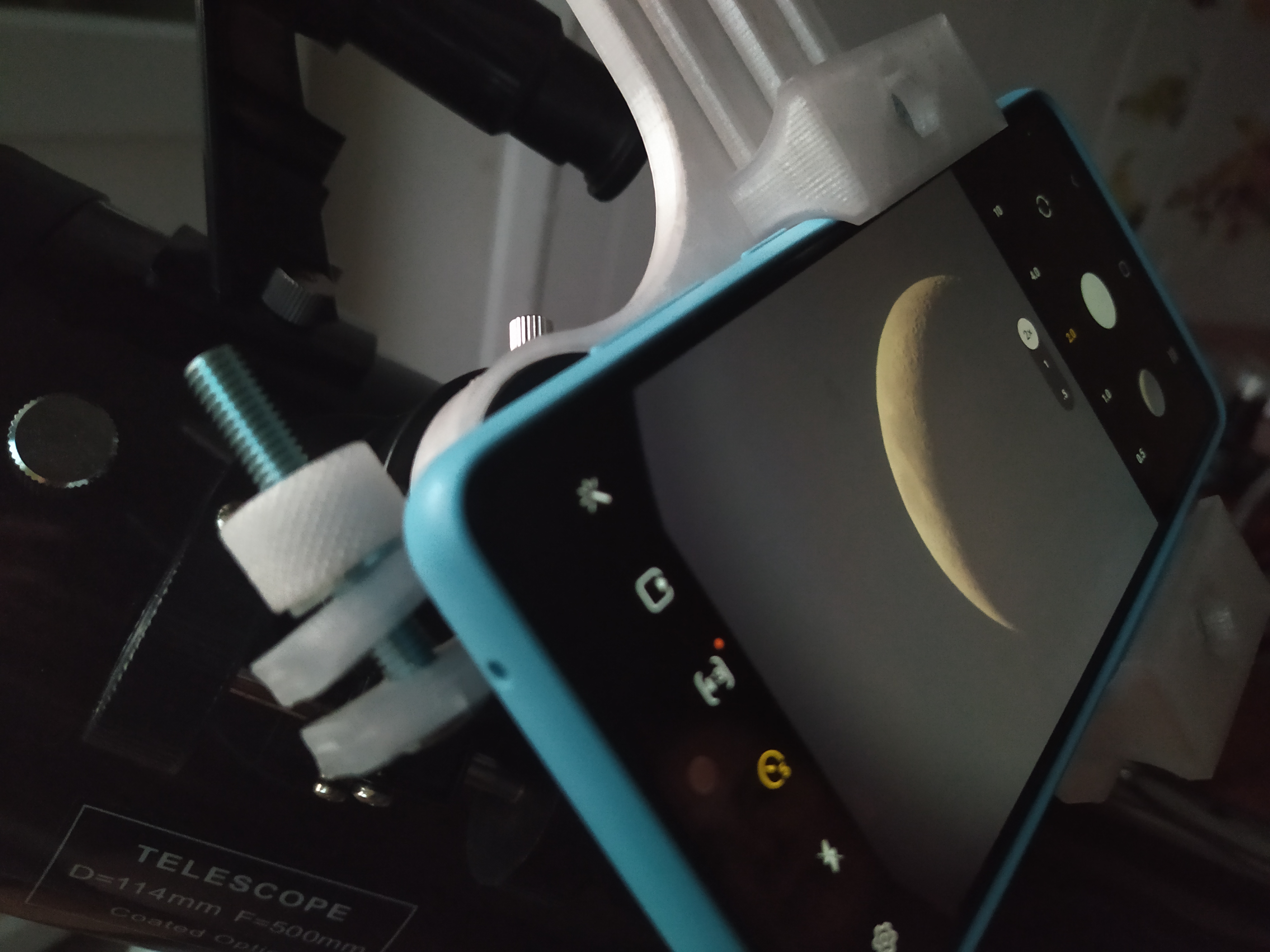

<p>I created a variant of the eyepiece mount that can be secured to shorter eyepieces too. I liked the original design, but I could only use it with my 25 mm eyepiece. With the new design I was able to use my 10 and 6 mm eyepieces too.</p><h4>BOM</h4><ul><li>3x M6x30 mm hex head screws</li><li>3x M6 nuts</li></ul><p>optional:</p><ul><li>3x M6 wing nut instead of the standard nut</li><li>3x M6 washers</li></ul><h4>Inspiration</h4><p>I was inspired by lengyej's design, but after a short research I found that his design was a remix of other authors, so I'll list here all of their work:</p><ul><li><a href="https://www.thingiverse.com/thing:2365190">https://www.thingiverse.com/thing:2365190</a></li><li><a href="https://www.thingiverse.com/thing:1050407">https://www.thingiverse.com/thing:1050407</a></li><li><a href="https://www.thingiverse.com/thing:801039">https://www.thingiverse.com/thing:801039</a></li></ul><h4>Design and print information</h4><p>Designed with Fusion360.</p><p>Printed with Creality Ender 5 pro.</p><p>Material: PETG; nozzle: 0.4 mm; layer height: 0.2 mm; infill: 20%; wall line count: 4; supports are not needed.</p>
