Universal Joint

grabcad

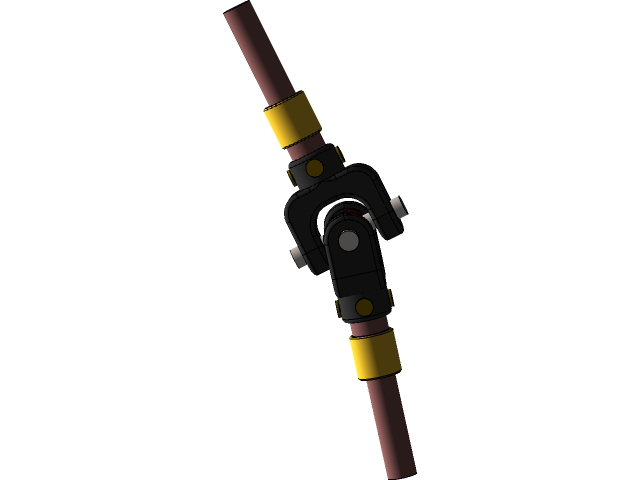

Rotary motion is transmitted through shafts using a universal joint, also known as a Cardan coupling or U-joint. This crucial connection links rigid rods with angled axes, ensuring smooth power transfer between them. The joint itself consists of two hinges situated side by side and oriented at 90 degrees to each other, connected by a cross-shaped rod that enables free movement in both directions.
