Undercarriage Fan Shroud for Lawsys New Carriage v2 - Solidoodle

prusaprinters

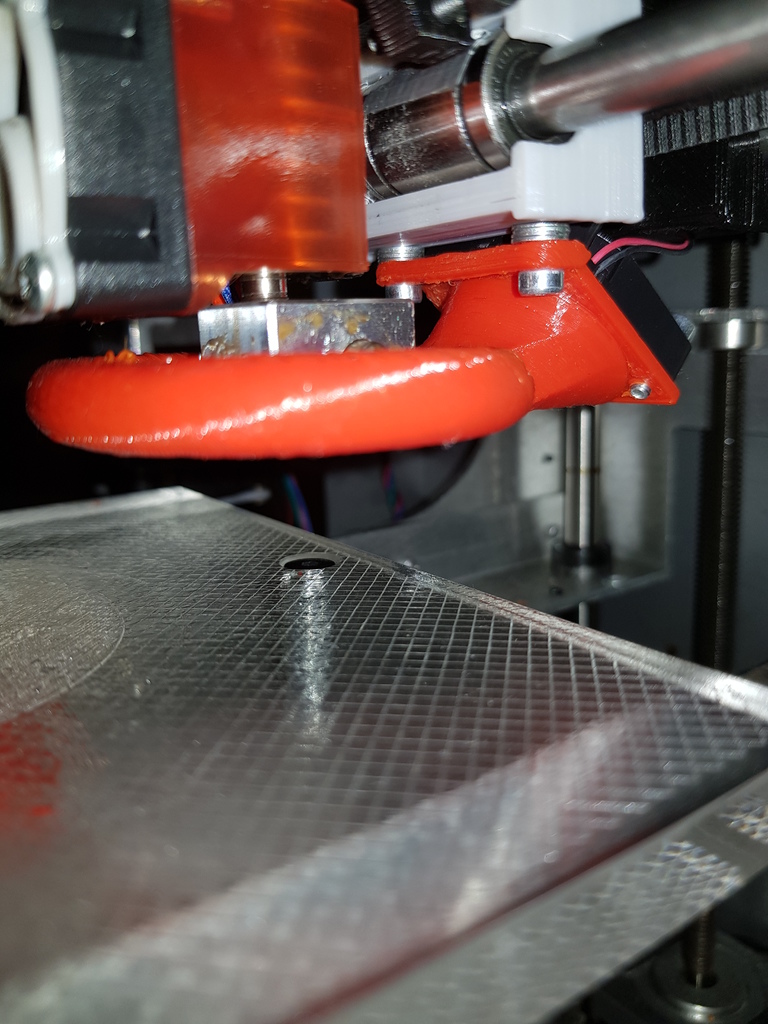

<p>Made an underside fan duct that fits Lawsy's NEW replacement carriages - centre front v2. i have an e3d v6 on my solidoodle, i dont know if it fits with another hot end.</p> <p>It bothered me that the only fan duct out there was Lawsy's fan duct, which is made for a 30x30x5 mm fan, which is impossible to find. So i made one that can be adjusted to 30x30x7 or 30x30x10. (adjust to desired height using washers - see pictures).</p> <p>i could not get it to print, so i made a stripped down version first, printed that, used that with a 30x30x10 fan to print the actual fan shroud. For your convenience i included the temporary fan shroud as well.</p> <p>It can be printed without support standing on the face were the fan is mounted on it (picture 3). i printed this in PLA and it works just fine for 50+ print hours and counting. Use m3 bolts to secure the fan to it, the holes for this are a tight fit, no need for a nut.</p> <p>if you didn't insert a nut into Lawsy's NEW replacement carriage v2, you will have to take it apart and insert them, this will not hold without those nuts (m3).</p> <p>---description is a work in progress---</p> <h3> Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>Solidoodle</p> <p><p class="detail-setting printer"><strong>Printer: </strong> <div><p>Solidoodle 2 - Base</p></div><strong>Rafts:</strong></p> <p>No</p> <p><p class="detail-setting supports"><strong>Supports: </strong> <div><p>No</p></div><strong>Resolution:</strong></p> <p>0.2</p> <p><p class="detail-setting infill"><strong>Infill: </strong> <div><p>15%</p></div></p> <p><strong>Notes:</strong></p> <p>This will not print if you don't already have a part cooling fan.. in that case, print the temporary fan holder, mount it under the carriage and use that with a fan to print the actual fan shroud (v3.1).</p> <p>For the best result, print it again now with the actual fan shroud.</p> </p></p></p> Category: 3D Printer Parts
