Twisted Lampshades

prusaprinters

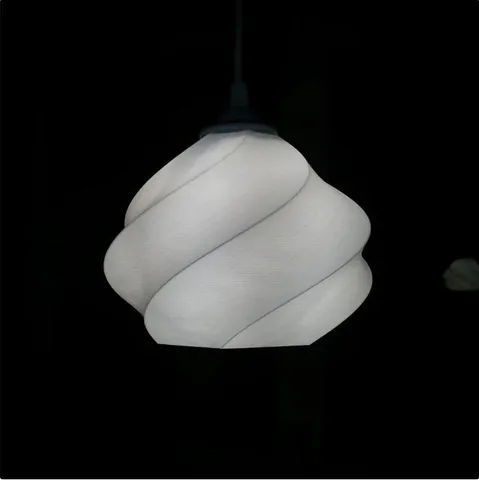

Lampshades for everyone! Fitted with a hole for a standard E27 socket. To print the "full" files, use the Vase function/Joris/spiralize the outer contour depending on your slicer. The thickness for the bottom btw can be max 2mm, so that the hole goes through. Else you'll have to drill through. The only exception here is the trident files, as they have a little notch to be centered in the socket, so here you'll need min 2mm, up to max 3mm. There is one file that isn't full, this you can print with a 0.4mm nozzle. There will be an openscad-file soon, where you can change the parameters to fit your own lampshade. Print instructionsThis prints in vase mode, no top layers. Set the bottom layer up to 2mm, except the trident files, start there at 2mm up to 3mm. The circle on the bottom is 0.2mm thick to get better adhesion to the bed. Can be broken of easily.
