TronXY x5s Fang Fan and Back Plate Mount

prusaprinters

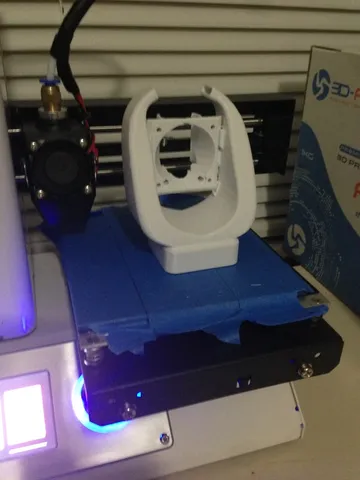

I was having a hard time mounting the original design and once I did it was not stable enough for me so I added a back mounting plate that uses the original screws and bolts the TronXY x5s 2018 comes with. Print Settings Printer: Monoprice Select Mini v2 Supports: Yes Resolution: .2 Infill: 100 Notes: I printed the fang at .3 and the back plate at .2 but it should have all been printed at .1 How I Designed This Tinkercad Basically I took the original fang fan and duplicated it in Tinkercad. Then I deleted everything but the neck mount and then flipped it to align with original. After that I imported a stl of the replacement mount for Tronxy x5s and merged the new bracket with the plate. Printed out first prototype and took it to the TronXY to see how far off I was. Took measurements, adjusted mount holes and printed second prototype. The second one was on point so I added M3 hex punch-out and printed one last time which is the file you see here in Thing Files. Videos and Pictures =================== Category: 3D Printer Accessories
