TRINITY2 - SmallHD Ultra5 Monitor Adaptor Plate
prusaprinters

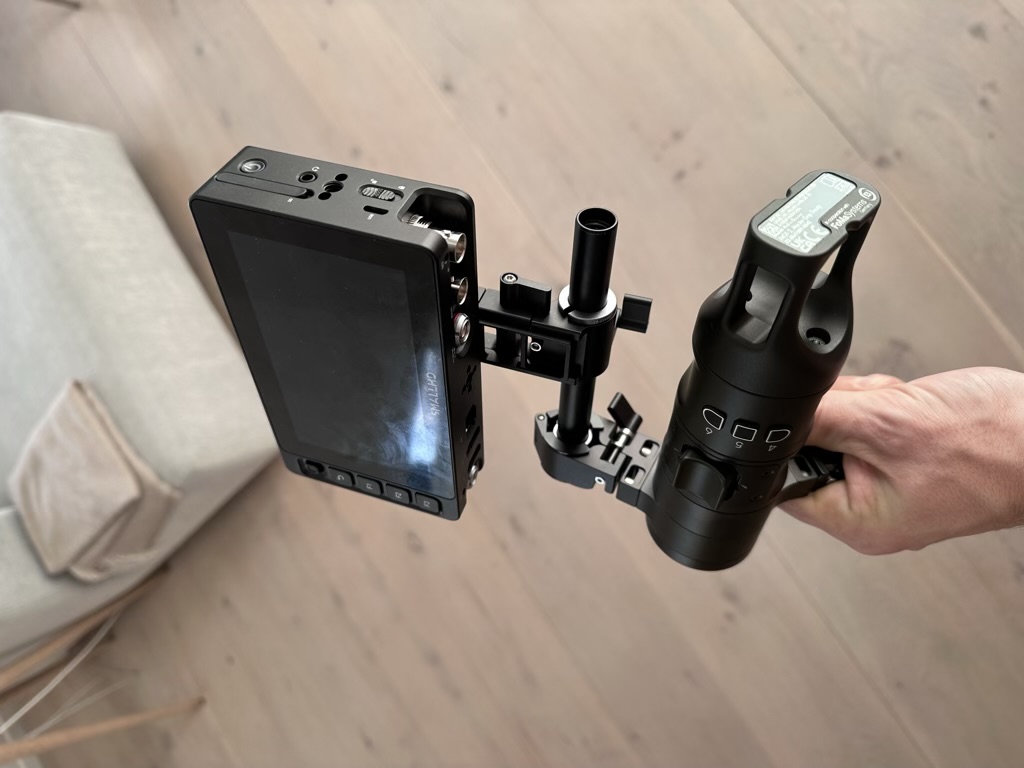

<p>A small adaptor plate to mount the SmallHD Ultra5 Monitor to the existing ARRI Trinity2 brackets for the Small HD 503 (K0.0044368) or Transvideo Starlite (K0.0044367).</p><p>Remove the 4 existing Torx screws from the ARRI bracket to remove the existing thump screw assembly. Place the adaptor plate so the 4 holes lign up, with the two monitor grill index fins pointing away from the bracket. Use the existing Torx screws to mount the adaptor plate to the bracket. Place the monitor on the adaptor plate so the two monitor grill index fins align with the cooling grill and the four holes lign up. Use 4 pcs. 3mm screws to affix the monitor.</p>
