Tray for GC / TOC vials

prusaprinters

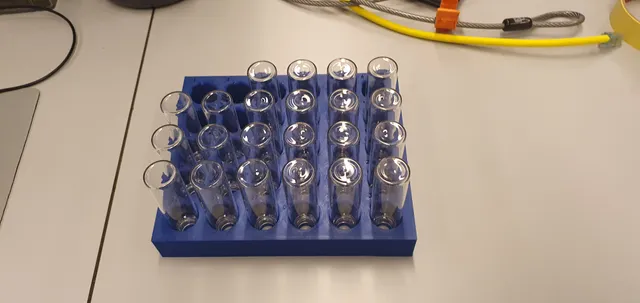

Tray for 30 glass vials (used in sample prep, etc.) for either GC or TOC application, that could be used for either 15 ml vials (such as ones used for GC headspace analysis) or for 30 ml and larger volumes (such as ones used in Shimadzu TOC analyzers).Each slot contains a draining hole from the bottom to allow drying villas after washing/cleaning, and a sidenotch to make vial extraction easier. This design has rounded corners, while the previous iterations had straight corners which is indicated on some photos. Presented models exist in 2 options:with grid alpha-numeric position codewith numeric position code onlyBoth options have through hole(s) under each vial slot and the slots for 4 small magnets. Used material: PETG or Carbon-filled Nylon.Designed in Solidworks 2021. These models were designed as part of work at Wageningen University and Research.
