TPU Printer Damper Suspension

prusaprinters

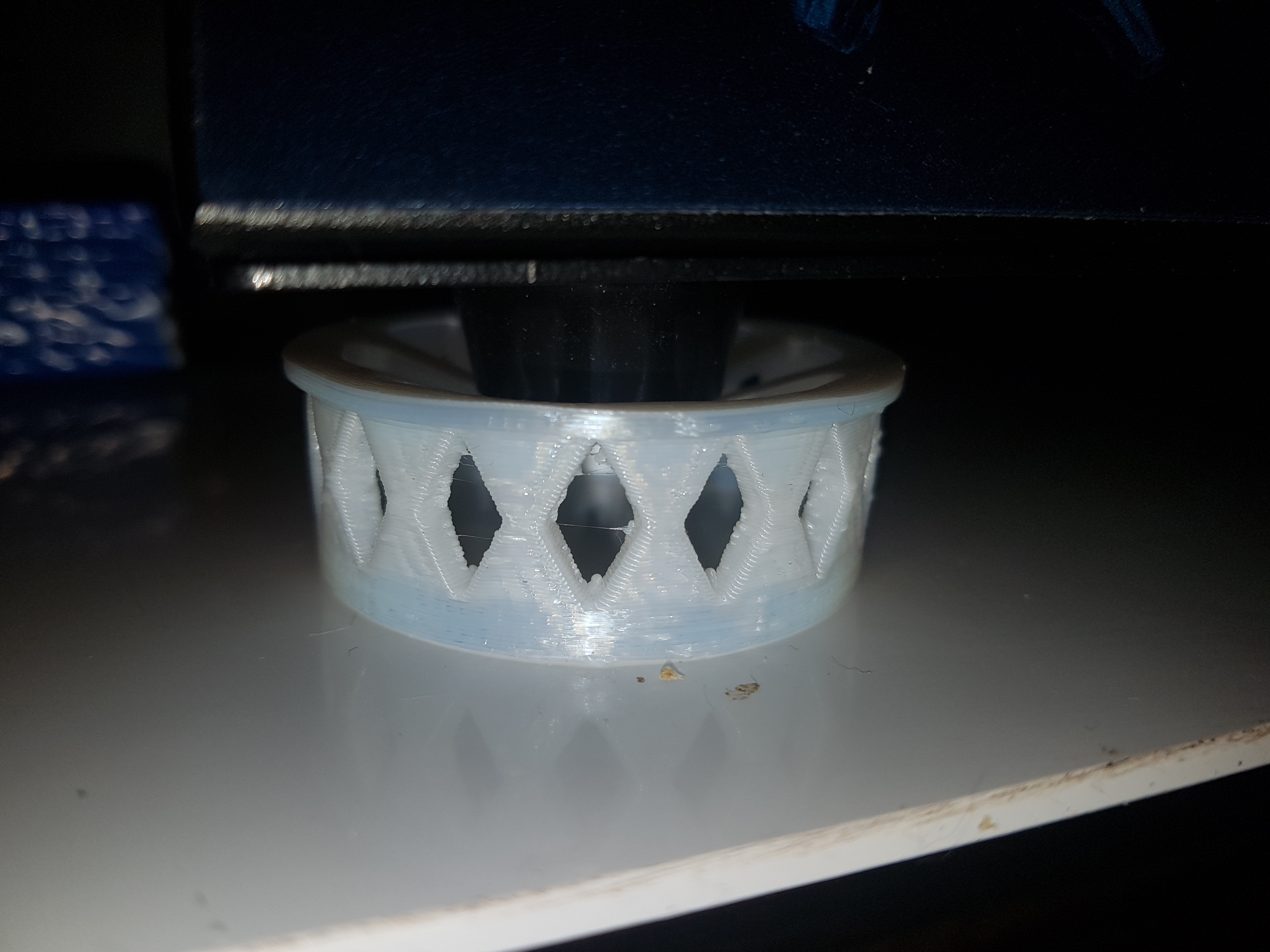

<p>This thingy I created for damping my Printer.<br/> I've seen the various Damper designs, but they were not looking so good.<br/> So I thought about using my TPU capabilties to create a Suspension Damper, like the Nitroglycerin suspensions in the past.<br/> Futher the TPU material reduces the swinging perfectly.</p> <p>Fail-Safe operation for this thing is to let the original feed down to the ground.</p> <p>The shim at the top adds strength to prevent the bars to collapse the print.</p> <p>The vertical opens I start to design in from now on to prevent warping. I've seen another design and it made perfectly sense: until it is required for stability, there is no long track to pull.</p> <h3>Print instructions</h3><p>Unassociated tags: vibration Suspension</p> <h3>Category: Machine Tools Print Settings</h3> <p><strong>Printer Brand:</strong> Anycubic</p> <p><strong>Printer:</strong> All-metal Mega</p> <p><strong>Rafts:</strong> No</p> <p><strong>Supports:</strong> No</p> <p><strong>Resolution:</strong> 0.3mm</p> <p><strong>Infill:</strong> 0%</p> <p><strong>Filament:</strong> Anycubic TPU White<br/> <strong>Notes:</strong></p> <p>Printed using Anycubic I3 Mega-S, native TPU support.<br/> Printed at 225 initial Layer, Bed 80°C, rest 205°C.<br/> Retraction on.<br/> Printed scaled to 50mm diameter</p>
