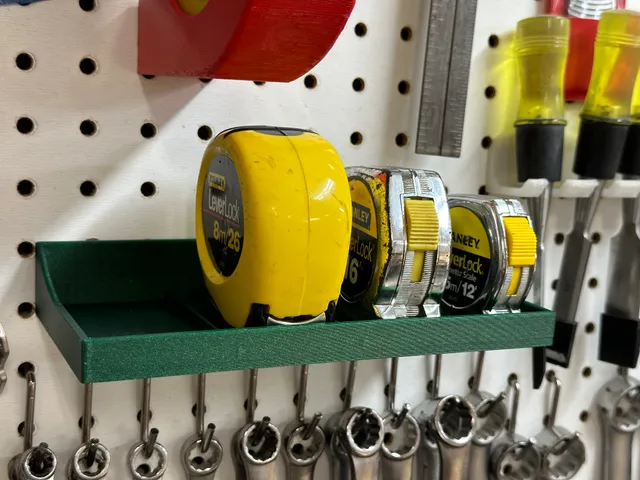

Tape Measure Holder for Pegboard

prusaprinters

Updated 1/19/2023: The holder now includes cut outs for the metal catch on the end of the tape measures. I had this though after I printed this the first time years ago, then it was added in the screw on remix, now I'm ready to reprint it for my pegboard. I will leave the non-cutout version should you want it. A quick model from scratch based on the Tape Measure Holder from rrod1393 https://www.thingiverse.com/thing:3421618 which is a screw mount version.The inside dimensions are 6.5 inches by 3.5 inches. The pegs are spaced for 1/4 inch pegboard on 1 inch centers.The walls are scaled so that with a 0.4mm line width and 4 wall line count, the walls will be solid for max strength. I printed it with a wall line count of 2 and 15% infill and it seems strong enough.I have included Step files for easy remixing.A Screw on version remix:   https://www.thingiverse.com/thing:5197532Print SettingsPrinter: Qidi Tech X-max (no longer own, I now have upgraded to a Mk3S+)Rafts:  NoSupports: YesResolution:  0.3 mmNozzle: 0.6mmWalls: 3Infill: 15%Filament: PLANatural Post-Printing =============Just pull the supports out from under the top pegs.
