Takenoko Tile Holders and Irrigation Channels

prusaprinters

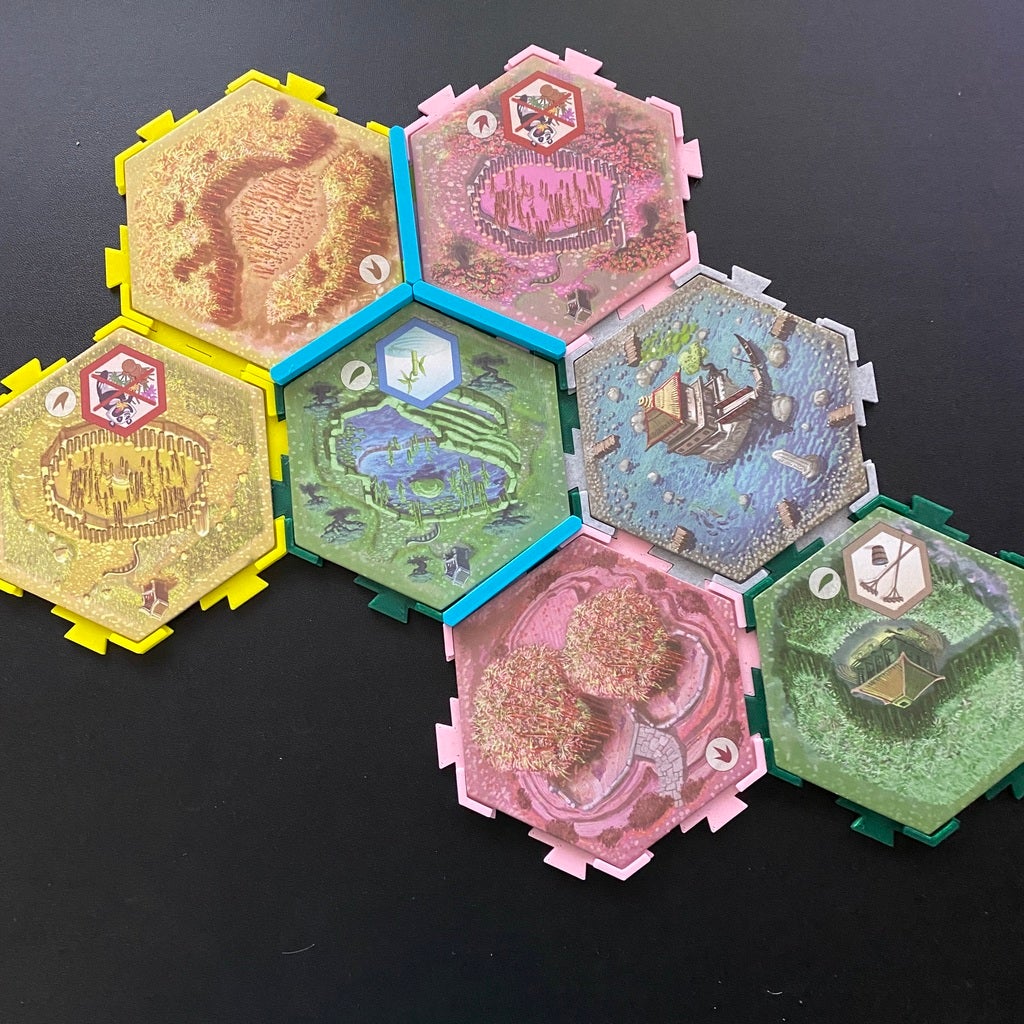

<p>I saw geodesign's <a href="https://www.thingiverse.com/thing:43081/files">grid and canals for Takenoko</a> and really liked the models (maybe because just the day before we'd managed to accidentally knock over our elaborate tile layout ☹).</p><p>However, I really wanted single tile holders, not triples. Plus, geodesign used the No Derivates CC license, which means I couldn't just do a simple remix. So, a trip to Fusion 360 it was, to implement my own versions of the tile holders and irrigation channels.</p><p>An additional feature is that you can stack the tile holders and save space, by rotating them slightly against each other. That way they fit into my organizer for this game <a href="https://www.prusaprinters.org/prints/37390-insertorganizer-for-takenoko">https://www.prusaprinters.org/prints/37390-insertorganizer-for-takenoko</a></p><p>(Sidebar: I first started with a design that uses small diametrically magnetized magnets to keep the tiles together. But while it's certainly aesthetically more pleasing, I felt spending $30 or so on magnets for a game that I like but don't play often was a bit too much)</p><p><strong>If you like what I'm doing…</strong><br><strong>&nbsp;</strong><br>…consider&nbsp;<a href="https://www.buymeacoffee.com/mix579">buying me a coffee</a>.<br><br><img src="https://media.prusaprinters.org/media/prints/35053/rich_content/1a370a7b-cbf9-43fd-927e-979a843d803f/image.png#%7B%22uuid%22%3A%223d10f028-4c6b-406d-8294-7dac5c380665%22%2C%22w%22%3A170%2C%22h%22%3A37%7D" alt="orange_img.webp"><br>&nbsp;</p><h3>Print instructions</h3><p><strong>Supports:</strong> No<br><strong>Resolution:</strong> 0.2<br><strong>Infill:</strong> 10%</p><p><strong>Notes:</strong></p><p>The game features the following number of plots:<br>11 green<br>9 yellow<br>7 pink<br>1 pond tile</p><p>So if you want to have one tile holder per tile, it's a total of 28. But then again, I haven't seen a game yet in which we laid down all tiles so you may get by with fewer. I printed them in the three colors of the game, plus gray for the pond, but that's obviously only cosmetics.</p><p>Additionally, you'll need 20 copies of the irrigation channels. Most printers should be able to fit all 20 on the print bed and print all them in one run.</p><p>I have attached GCODE files for 20 irrigation channels, as well as three versions of tile holders:<br>One copy<br>Two copies<br>Four copies. For which PrusaSlicer complains that there are some paths outside of the print area but the model prints okay nonetheless.</p>
