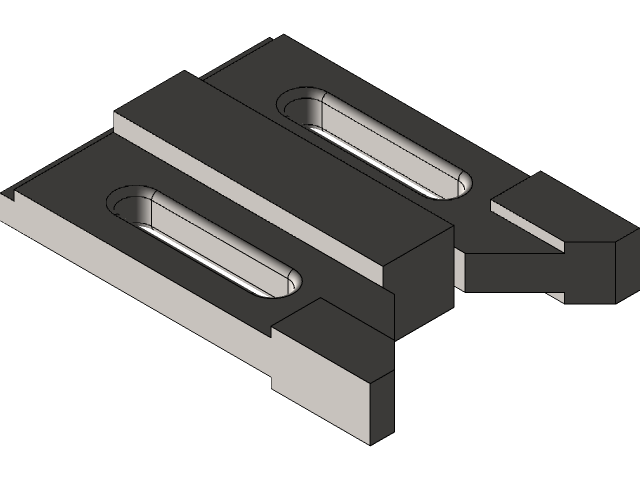

Density = 0.01 grams per cubic millimeterMass = 1122.86 gramsVolume = 153816.93 cubic millimetersI started out by drawing the narrow side piece which was 5mm wide and 95 mm long and then finding the midpoint across which I ran a construction line as my line of symmetry. I than started working on the top rectangle simultaneously mirroring parts onto the bottom one, I was than left with the middle which I dimensioned accordingly. One of the parts (the slot) I did while dimensioning the length(48mm) and then width which I first did incorrectly as its important to notice that when sketching the slot’s width should be 11mm not 15mm. In order to create the angled ends, I drew a line a bit away from the sketch which I dimensioned to be 45 degrees away from the top line and just moved the line until it was in the right position and angle. When it came to extruding, I first extruded the middle body (12.5 on each side) and the got to the top and bottom rectangles with the slots which I extruded by 6mm on each side and the triangular sketch in the corners also needed to be extruded by 6mm. Second, I extruded the top and bottom sketched on top of the triangles in the corner by 9.5 mm both sides. I than extruded the 5mm line on the side by 2.5 the front direction and then by 5mm the back side, also make sure the back side has the middle bas up to the end of the thin line. Lastly fillet the slots on both sides by 2mm and that’s it.
