Stand / Adapter Plate for Filament Spool Holder for the (Un)Original Drybox

prusaprinters

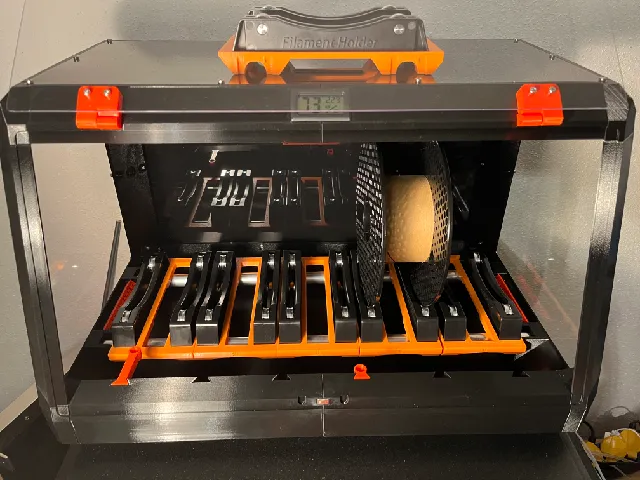

Since I ordered some universal filament “spool holders” on Ali Express, I wanted to integrate them into my (un)original drybox, for a better roll off of the filament during printing. Thus I designed a (very simple) base plate (adapter plate) for the spool holders to fit into the drybox. You put them directly on the metallic 18mm rods in the dry box.The Adapter Plate is designed for spool holders with 2,4mm width ans 16,5mm length.The attached print files *.bgcode (for MK4 IS, Prusament PETG) are already numbered with “1”, “2”, “3”, “4”, “5” and “SPOOL HOLDER”.I printed them upside down to reduce support material. Nethertheless, support is needed. The *.stl file is attached, so you can modify the adapter plate to your own needs. You can see the type of spool holders, I ordered on Ali Express, in the attached pictures. If you buy these, remove the rubber pad at the bottom before putting them into the adapter plate. If there are any problems with the model or if you have recommendations to improve the model, just let me know.Thanks a lot!
