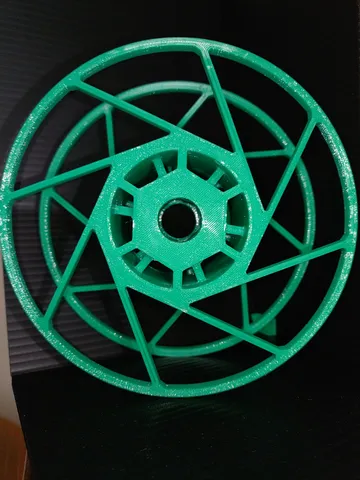

Spool φ160

Spool φ160

prusaprinters

SpecFlange diameter :: φ160 mmFlange thickness :: 6 mmCenter Hole diameter :: 20 mmBarrel diameter :: 70 mmBarrel width (total) :: 45 mmnote ::The flange has two pentagonal holes to hold the filament ends.The flange and barrel have a screw of M36.The inside of the barrel is carved with a hexagonal groove inscribed in φ22 mm.OptionThis model is a P-5 bobbin of the Japanese Cable Makers' Association Standard (used for enamel wires, etc.) with the flange thickness and barrel width cut in 1/2.

Download Model from prusaprinters

With this file you will be able to print Spool φ160 with your 3D printer. Click on the button and save the file on your computer to work, edit or customize your design. You can also find more 3D designs for printers on Spool φ160.
