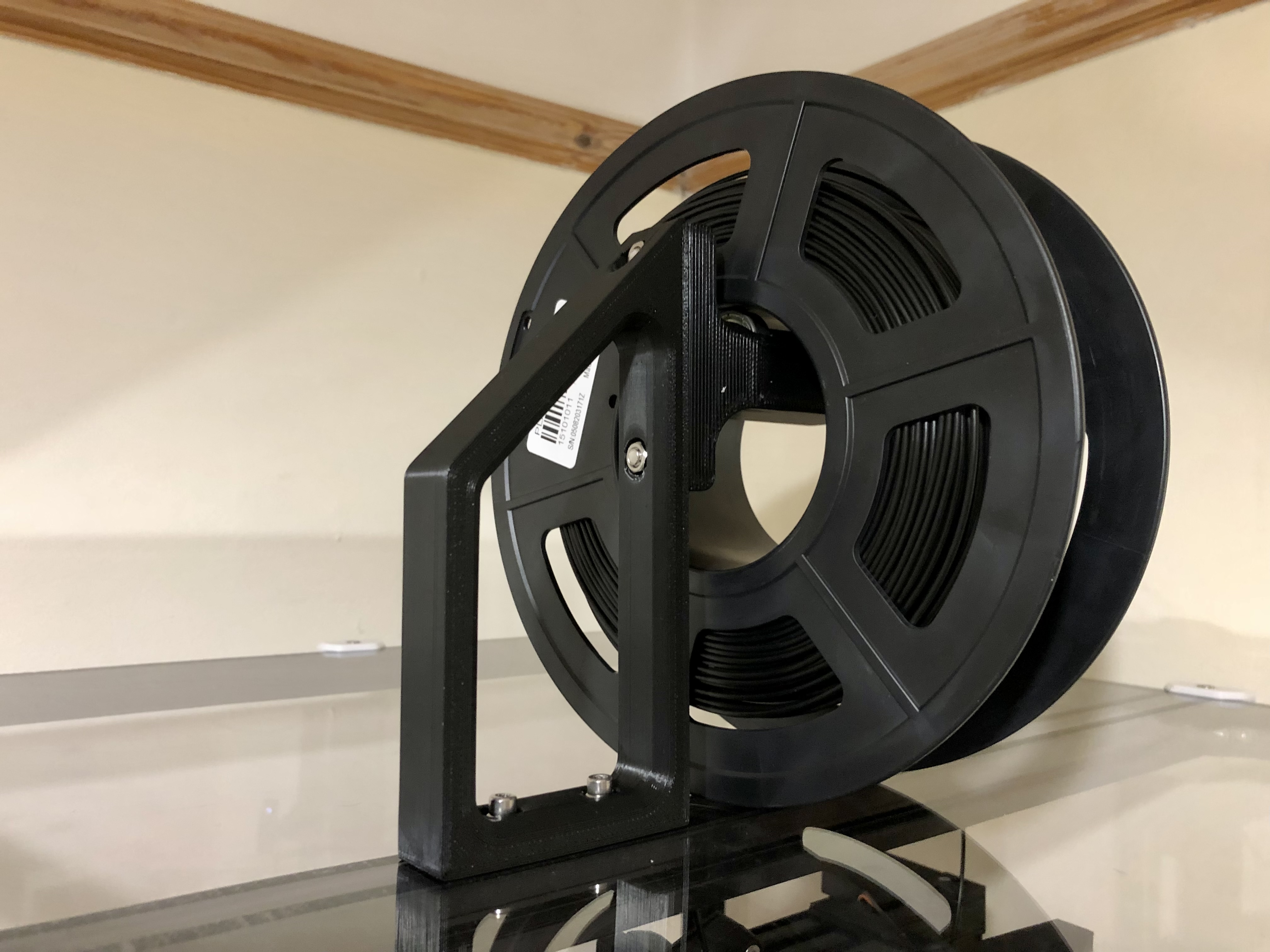

Spool holder frame (2020 extrusion)

prusaprinters

<p>UPDATE 11/09/2022:</p><p>Added a 175mm height version for even bigger filament spools.</p><p>&nbsp;</p><p>Remix based on yejj97's design found <a href="https://www.thingiverse.com/thing:2909802">here</a>.</p><p>Increased the height to 155mm (10mm more than original) to accommodate bigger filament spools (e.g. Sunlu and Amazon Basics); changed the bottom holes to M4.</p><p>Holds 1 kg filament spools without any issues.</p><p>&nbsp;</p><p>My print settings:</p><ul><li>PLA</li><li>0.2mm layer width</li><li>4 perimeters</li><li>31% gyroid infill</li><li>No supports</li></ul><p>Print laying flat on its side.</p><p>&nbsp;</p><p>Required hardware:</p><ul><li>2x M4x12mm cap head screws (DIN 912)</li><li><i>2x M4 washers (optional)</i></li><li>2x M4 T-nuts / drop-in t-nuts (or print your own, i.e.: <a href="https://www.printables.com/model/179633-m3-m4-drop-in-t-nuts">this</a>)</li><li>2x M5x16mm socket button screws (ISO 7380) / or use equivalent DIN 912</li><li><i>2x M5 washers (optional)</i></li><li>2x M5 nuts</li></ul><p>&nbsp;</p><p>To be used with <i>2020_spool_holder.stl</i> from Hultis, found <a href="https://www.thingiverse.com/thing:2909802">here</a>.</p>
