Spool holder for MMU2s

prusaprinters

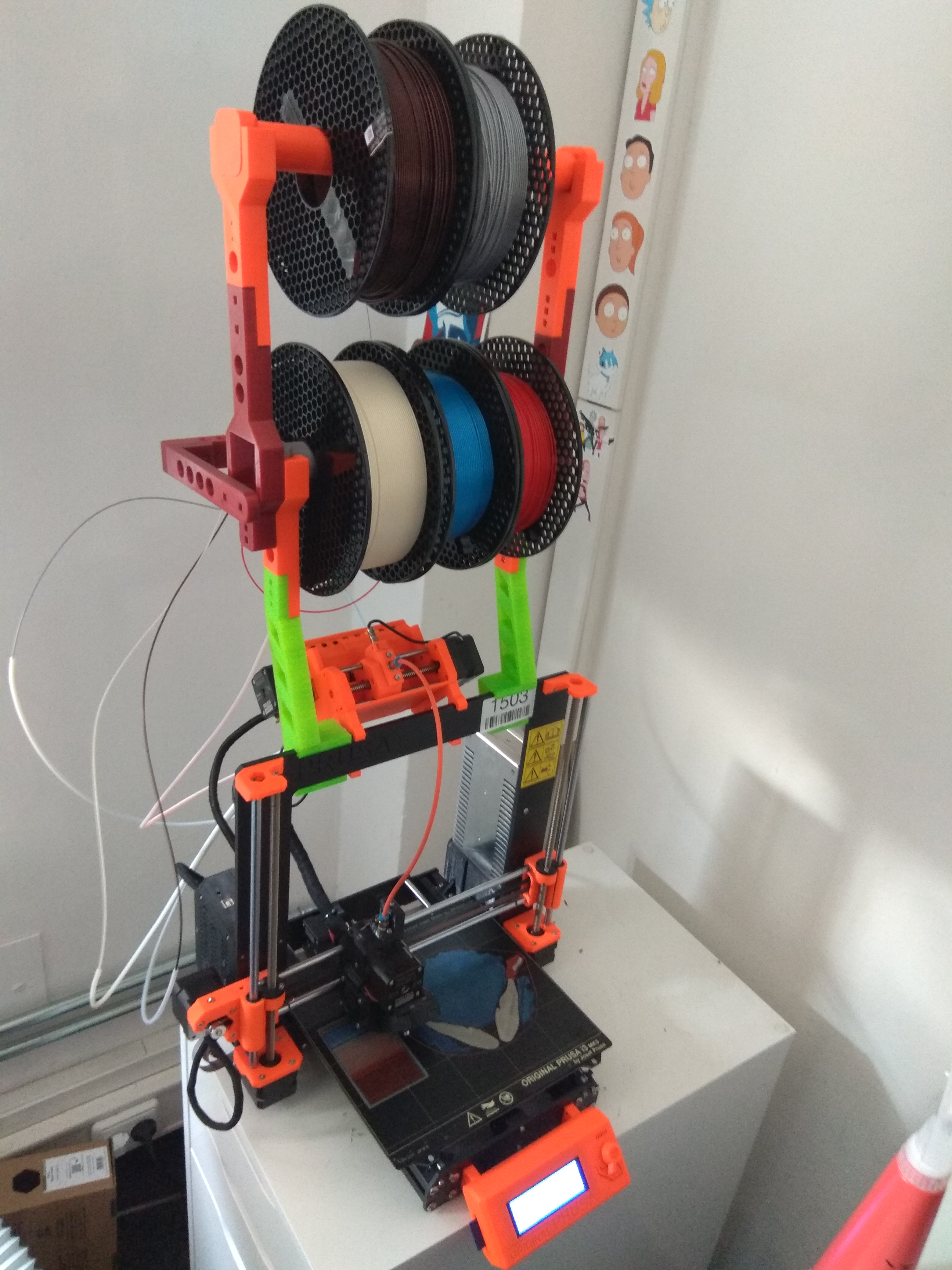

<p>Work in progress</p> <p>Spool holder for MMU2s vertical solution. All the spool will be on top of the printer<br/> It can hold only 6 spools (3 per level).</p> <ul> <li><p>Fork - double sided, print 4 times</p> </li> <li><p>Bottom rod - double sided, print twice</p> </li> <li><p>Top rod - double sided, print twice</p> </li> <li><p>Bottom right, left - snapped to the printer frame, left and right version is different for each side of the printer</p> </li> <li><p>Level connector - connect top and bottom level, print twice</p> </li> <li><p>Filament router holder - double sided, print twice</p> </li> <li><p>Filament router. Print left and right once.</p> </li> </ul> <p>Route the filament through any hole and to the PTFE tube. It will help guide the filament and prevent tangling. It reduce tangling significantly. In the photos, you can see that the blue filament is being used right now, the rest is unloaded and just hanging down.<br/> The tubes bend to the side for some reason. I added the small golden hook to prevent the filaments going past the motor (which never happened, but just in case).</p> <p>9/26/2019 - correct version of bottom rod uploaded<br/> 5/26/2019 - all files uploaded - same as the photo</p> <h3>Print instructions</h3><p>Recommended material PETG, but any other would probably work too<br/> No supports</p>
