Spool Holder for Lack Enclosure

prusaprinters

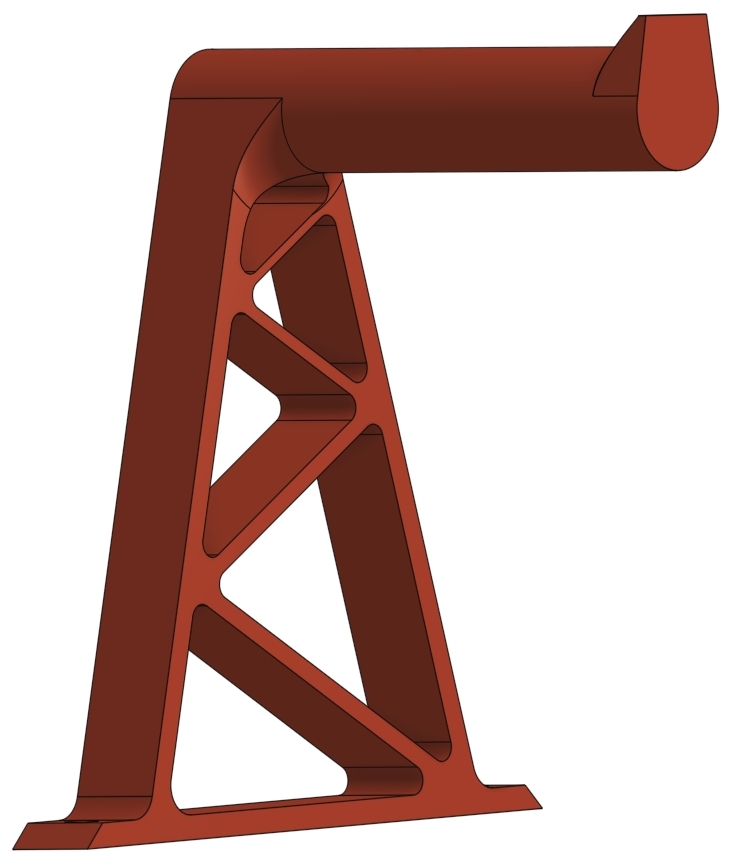

<p>This is a spool holder I designed for use with the IKEA Lack Enclosure:<br/> <a href="https://www.prusaprinters.org/cheap-simple-3d-printer-enclosure/">https://www.prusaprinters.org/cheap-simple-3d-printer-enclosure/</a></p> <p>I wanted something that would allow me to swap out spools quickly and easily, and not have to fidget with rails. I suggest printing this with 50% infill and lying on its side so that the "arm" is aligned with the Z-axis.</p> <p>Although this print orientation isn't optimal for strength, it should be sufficient to hold up 1 kg spools. I printed with 3 perimeters, but you could increase this (and infill %) if you are worried about part strength.</p> <p>You can use two #12-3/4" (or 6x20mm) screws to secure this onto the top of the Lack table. You may need to drill the holes (7/32" or 5.5 mm) to fit the screws, depending on your printer's tolerances.</p> <h3> Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>Prusa</p> <p><p class="detail-setting printer"><strong>Printer: </strong> <div><p>i3 MK3</p></div><strong>Rafts:</strong></p> <p>No</p> <p><p class="detail-setting supports"><strong>Supports: </strong> <div><p>No</p></div><strong>Resolution:</strong></p> <p>0.2</p> <p><p class="detail-setting infill"><strong>Infill: </strong> <div><p>50%</p></div></p> </p></p></p> Category: 3D Printer Accessories
