Spool Holder for IKEA PLATSA

prusaprinters

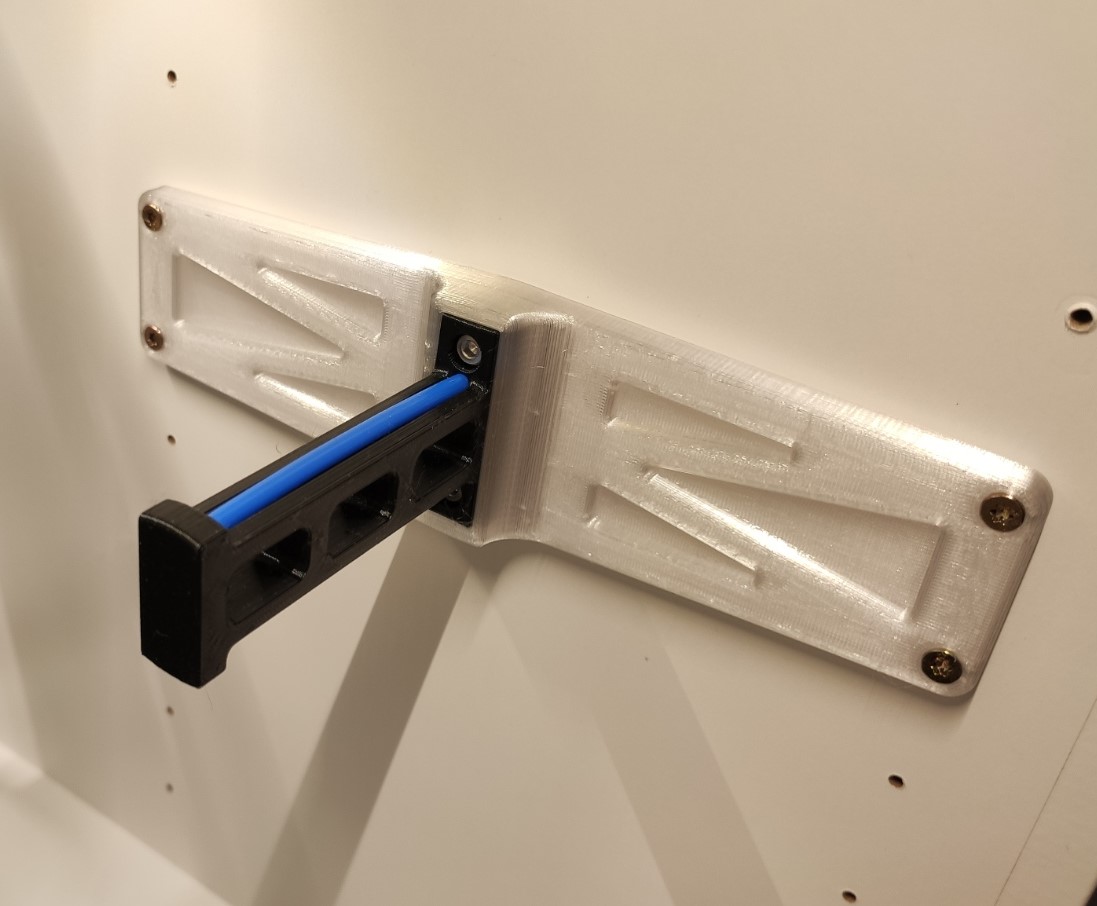

<p><strong>Attention! Apparently there are two versions of PLATSA with a different hole spacing. Please measure the spacing first! There are two models, one with a spacing of 192x32mm and the other one with a spacing of 200x25mm. Print the matching base plate.</strong></p><p>This is a <strong>spool holder</strong> designed to be mounted to <strong>IKEA PLATSA</strong>.</p><p>It uses a slightly modified version of the <a href="https://github.com/VoronDesign/Voron-2/blob/Voron2.4/STLs/Spool_Management/spool_holder.stl">spool holder of a Voron 2.4</a> that has been attached to a base plate. The filament spool is only in contact with a piece of PTFE tube that you put into the holder piece. This greatly minimizes friction.</p><p>Both files can be printed in the standard orientation. You might need some support for the hexagonal holes in the base plate.</p><p>To build this, you'll need:</p><ul><li>2 M4 nuts</li><li>2 M4x10mm screws</li><li>4 3.5x12mm countersunk wood screws</li><li>90mm PTFE tube</li></ul><p>Instructions on how to build and mount the spool holder can be seen on the picture below as well as in the provided exploded_drawing.PDF</p><figure class="image"><img src="https://media.printables.com/media/prints/231023/rich_content/9dff8c89-a837-4ba2-87d6-42a9d648f408/explosionszeichnung.png#%7B%22uuid%22%3A%22cf101d17-95d9-4342-97a7-239b411f647d%22%2C%22w%22%3A1932%2C%22h%22%3A1149%7D"></figure><p>&nbsp;</p><p>&nbsp;</p><p>&nbsp;</p>
