Sovol SV01 Pro FanDuctX2

prusaprinters

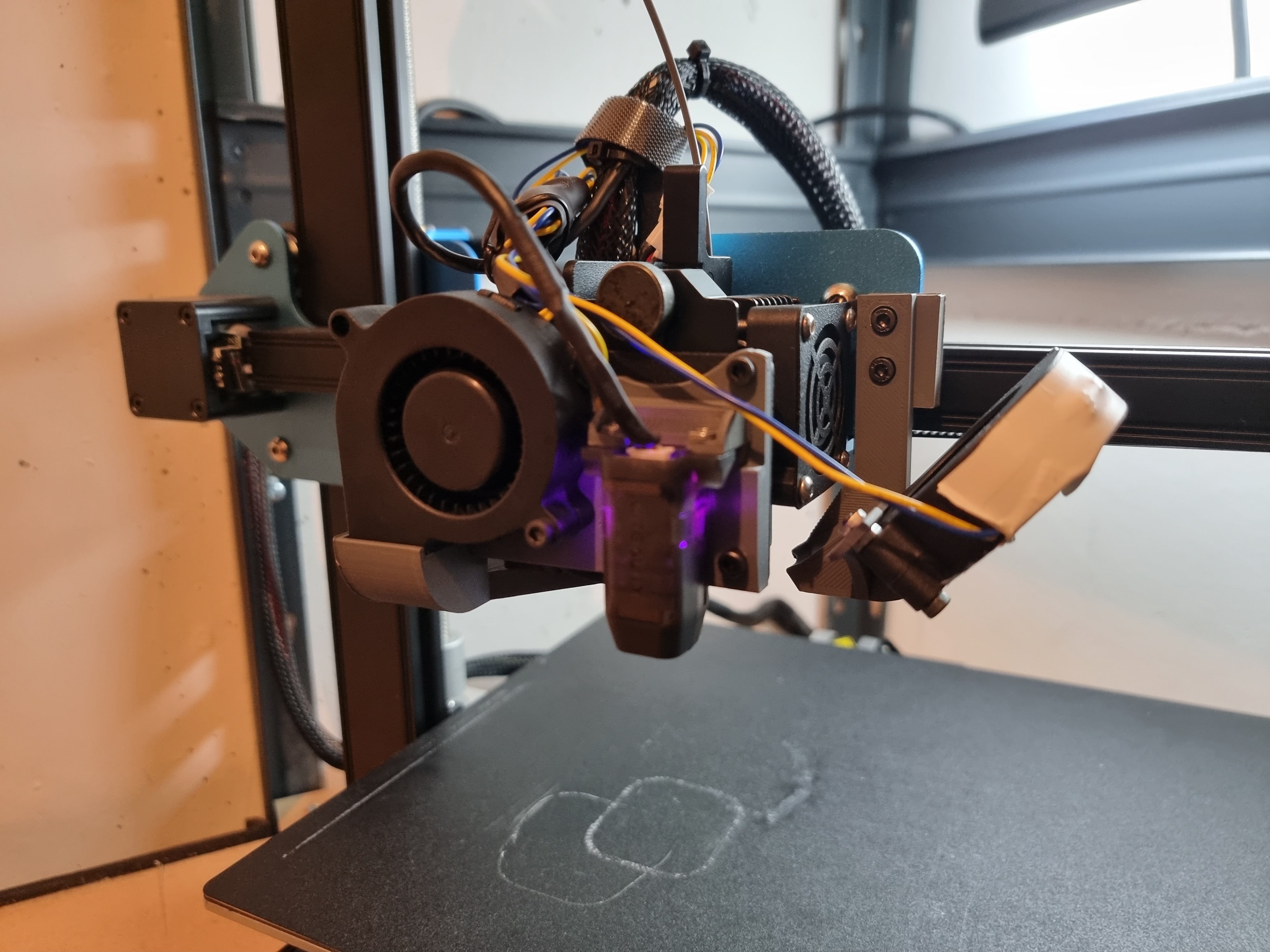

<p>FanDuct to help cooling your prints. It uses two 5015 blower fans, that should be enough to cool your prints.</p><p>be carefull, you need to modify your printer.</p><ol><li>to add the second blower fan, you need a y-adapter or add a seperate wire</li><li>you need remove the cl-touch from its original position and add it to the new printed mount. i used two M3 16mm.</li><li>the bl-touch mount need to be glued onto the left fan duct mount. (see pictures)</li><li>screw or glue the fan to the respective bracket</li><li>attach the right fanduct mount to the position, where the original bl-touch mount was. I recommend to add the printed spacer between the fancuct mount and the metal plate.</li><li>before you add the left fancuct mount, look at the square metal plate. you´ll see three holes with m3 thread. add one m3 10mm screw to the upper left hole, with just one turn.</li><li>now you can hook in the fan bracket and add the second and the third screw.</li><li>the new cl-touch offset should be x=11 y=-50</li></ol><p>this fanduct should also work on the new SV05, but i´m not able to test it myself.</p>
