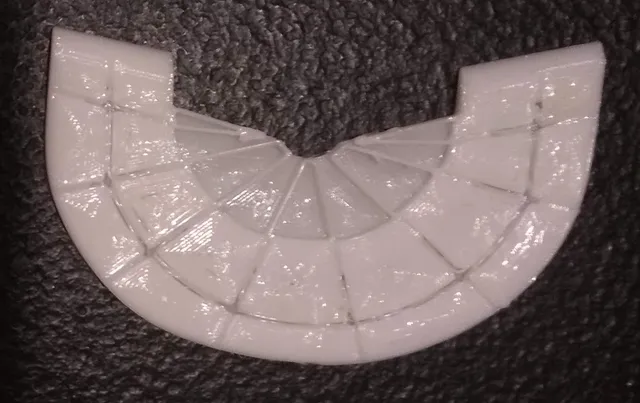

Sole - Heel Pad Wear Protection
prusaprinters
Sole protection for heels of sneakers or walking shoes. Modeled to 78mm wide.Print material TPU95A (7 grams)Print Time: 18 minutes Walls: 10Top/ Bottom 2 Layers with Concentric PatternInfill: 100% Concentric PatternSpeed: 25-30mm/sPrint Temp: 210cBed Temp: 60cLayer Height: 0.3Nozzle: 0.4Size to fit: Use slicer scaling tool to desired width of heel needed. Scale all three dimensions first (larger/smaller) then go back and only scale the Z axis to 3mm height.Soft rubber solesSand area clean, rub sole with solvent (91% alcohol) recommend using gorilla heavy duty mounting tape. Attach to sneakers/ walking shoes.If available 3D pen (220c) same TPU 95A around outside of sole protector and sneaker. File or sand to desired finish.
