Solder Spool Holder

prusaprinters

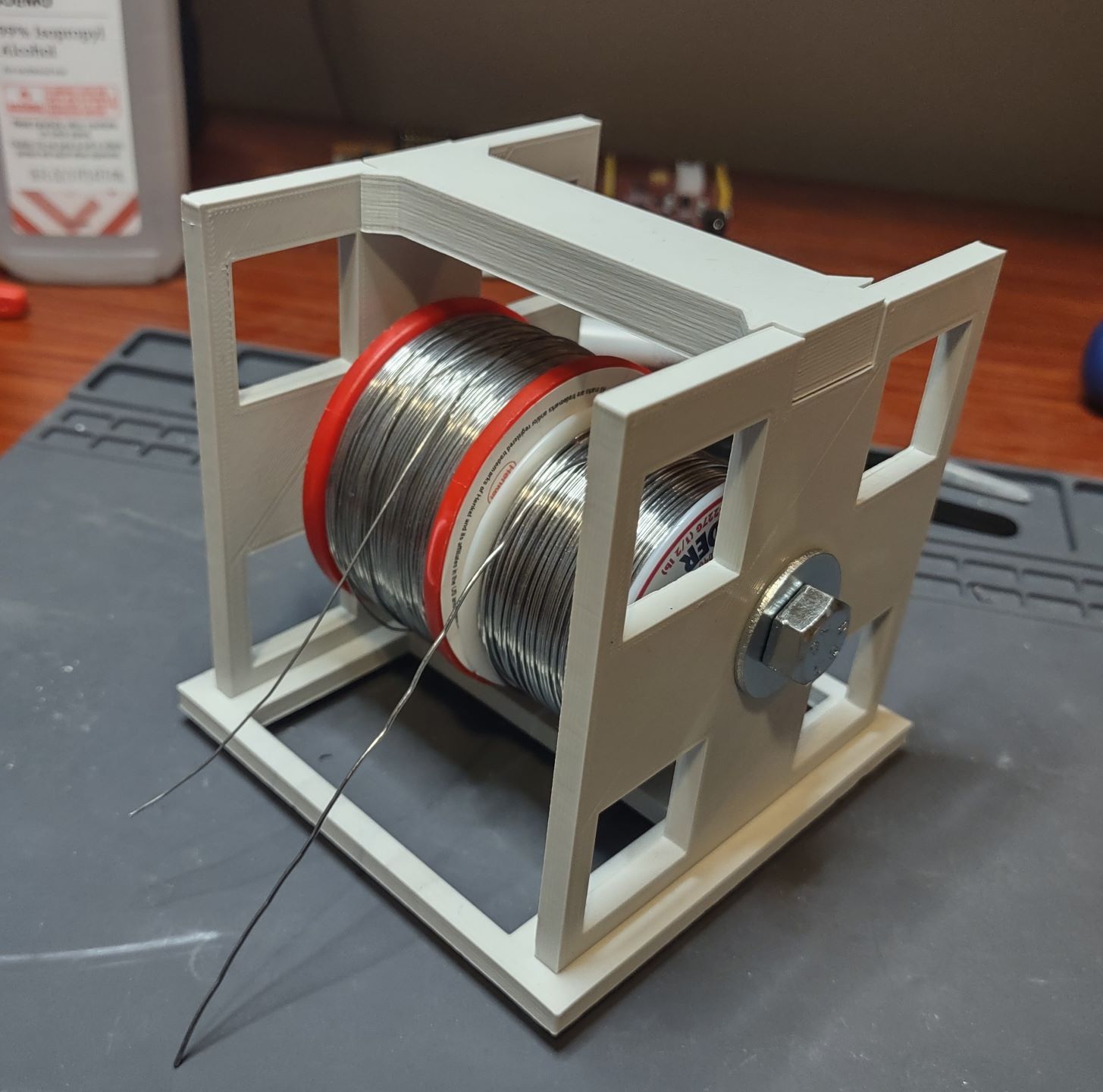

<p>Abstract:<br>This is a multi-part solder holder that can be assembled. I designed this because a print of a solid frame design crashed after roughly six hours on my printer.</p><p>Printing:<br>Originally printed on a Monoprice Select Mini v2. The pictured result is printed from PLA.&nbsp;</p><p>Post-Print and Assembly:<br>Depending on how closely your print conforms to the dimensions of the design you may find it helpful to shave the edges of the walls slightly with a razor. The walls should press fit into the base. Additionally, I found it useful to use four sticky rubber feet on the bottom so the holder wouldn't slide around on my desk.&nbsp;</p><p>The rod is a 3/8" &nbsp;x 4" bolt with a wingnut on the opposite side and two washers for protecting the body of the holder.&nbsp;</p><p>&nbsp;</p>
