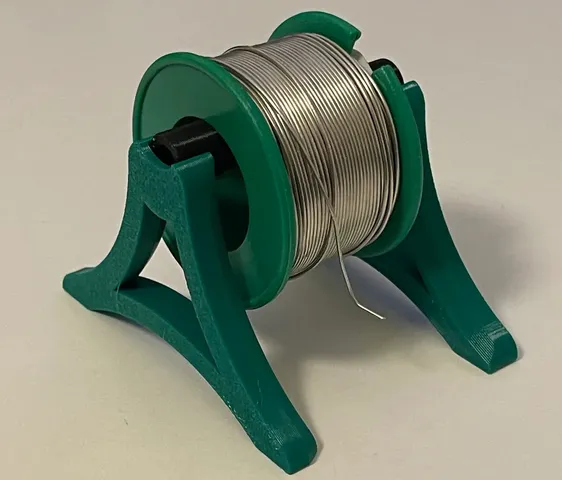

Solder Holder Stand
prusaprinters
all parts snap togetheronly 18g of filament is neededmaximum spool width is 40mm, if you need longer one, scale the length in your slicerheight of the spool: 50mm from top of its opening to the bottom :)Printing instructions:PLA or PETG is OKyou need to print:1x LEFT1x RIGHT1x ROD1x BRACEprint orientation as per picture - no brim, no supportsI strongly recommend to print the rod SEPARATELY, or add brim if you have low bed adhesionuse max layer height possible - pictured is 0.32mm @ 0.4mm nozzleuse 4 perimeters and 15% infill (rectilinear)Version history:v1.118.2.2024added bottom brace - snaps on and fixes wobble of the standv1.026.1.2024initial release
With this file you will be able to print Solder Holder Stand with your 3D printer. Click on the button and save the file on your computer to work, edit or customize your design. You can also find more 3D designs for printers on Solder Holder Stand.
