SNZB-03 TV Proximity Sensor

prusaprinters

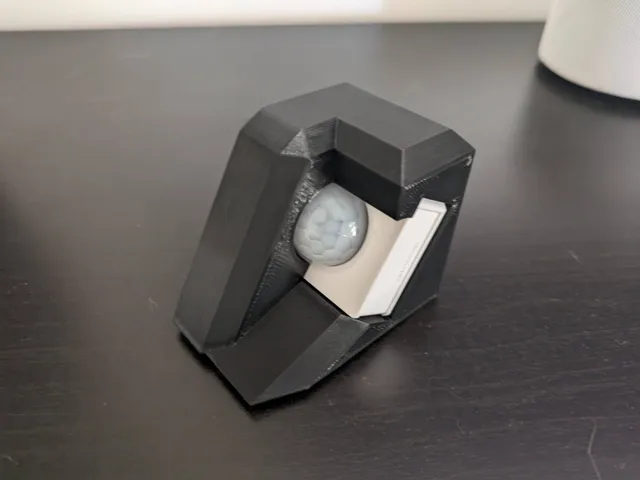

IntroductionWanted to stop people touching the TVTV is mounted with a wall at other side of TV cabinetA correctly masked motion sensor at one side could be a good deterrentVitaminsSonoff SNZB-03 PIR Motion Sensoretc. software for motion sensor to connectAdhesive - I used 3M Command stripsDesignModelled in Fusion 360 (file included for remixing)Not particularly parametric as I did not expect to need to make another anytime soonSnug slide fit for Sonoss SNZB-03 PIR Motion SensorCan be removed with a knife levering on the sensor dome but otherwise stays putNo supports requiredPrintingPrint STL as downloaded, it should not need any supportsMy settings were0.2mm20% support cubic infill3 verticall walls, 5 bottom/top walls30s minimum layer timeAutomationTested on Home Assistant 2023.12.3alias: TV Motion Sensordescription: ""trigger: - platform: state   entity_id:     - binary_sensor.[your_motion_sensor]   to: "on"condition: - condition: state   entity_id: media_player.[your_tv]   state: playingaction: - service: media_player.play_media   data:     media_content_id: media-source://media_source/local/error.mp3     announce: true     media_content_type: music     extra:       volume: 50   target:     entity_id:       - media_player.[your_media_player]- service: media_player.turn_off  target:    entity_id: media_player.[your_tv]  data: {}mode: single
