Small Y Belt Tensioner for Tevo Tarantula
prusaprinters

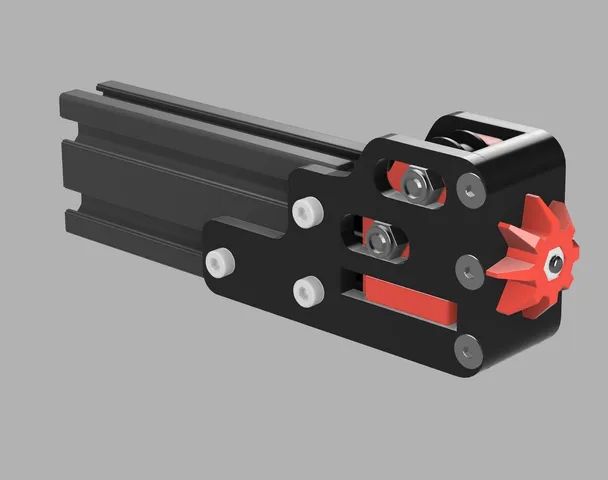

If you found my things useful, you can buy me a cup of coffee: http://paypal.me/marcuss24 The original version was too big for my usage. So I created this smaller version of Y belt tensioner for Tevo Tarantula. Changes: Turnwheel has the grave for a nut backplate is screwed to brackets using M3 flat head screws Tensioner module, brackets and backplate are smaller -> So it's shorter for 30mm than the original tensioner from Banholm. it's compatible with large bed Screws: 2x Pulley screw and nut 2x Pulleys 4x M3x12mm Flat Head Screw (for the backplate) 2x M3x10mm Flat Head Screw (for the middle holes in the backplate) 6x M4x10 screws 6x M4 T-nuts 1x M4x30mm screw 1x M4 Nut 1x Washer 3D Assembly: https://a360.co/336NzIu Print Settings Printer Brand: TEVO Printer: Tarantula Rafts: No Supports: No Resolution: 0.2 Infill: 100% Category: 3D Printer Parts
