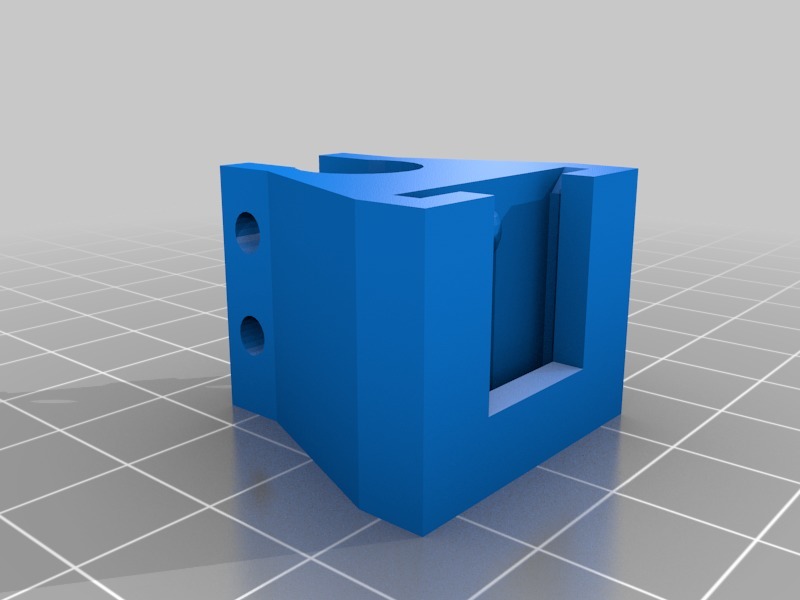

Slotted Bike Rack light bracket

prusaprinters

<p>I needed to mount 2 lights on my new recumbent tadpole trike. The brackets that came with the lights were meant for handlebars or seat post, neither worked with my trike at all. Its a standard square slot you can mount the light either direction.</p> <p>Designed to be used with 2 3mm x 20mm machine thread bolts and 2 square nuts that are held in place by the body of the bracket.</p> <p>Updates:</p> <p>1.0 Base model</p> <p>1.1 Made slot deeper and added a small nub internally to the slot. I lost a light on a ride last night. Ended up finding it but warranted a change to the design</p> <p>1.2 Wider mounting points</p> <p>1.3 Made deeper slot and extended the length to prevent distortion and cracking</p> <h3>Print Settings</h3> <p><strong>Printer:</strong></p> <p>Stanley Model 1</p> <p class="detail-setting rafts"><strong>Rafts: </strong> <div><p>Doesn't Matter</p></div> <p><strong>Supports:</strong></p> <p>No</p> <p class="detail-setting resolution"><strong>Resolution: </strong> <div><p>0.4</p></div> <p><strong>Infill:</strong></p> <p>50%</p> <p><br/> <p class="detail-setting notes"><strong>Notes: </strong></p> </p><div><p>Designed to be used with 2 3mm x 20mm machine thread bolts and 2 square nuts that are held in place by the body of the bracket. </p></div> Custom Section ============== </p></p> Category: Other
