Sleek wall mount for Skådis

prusaprinters

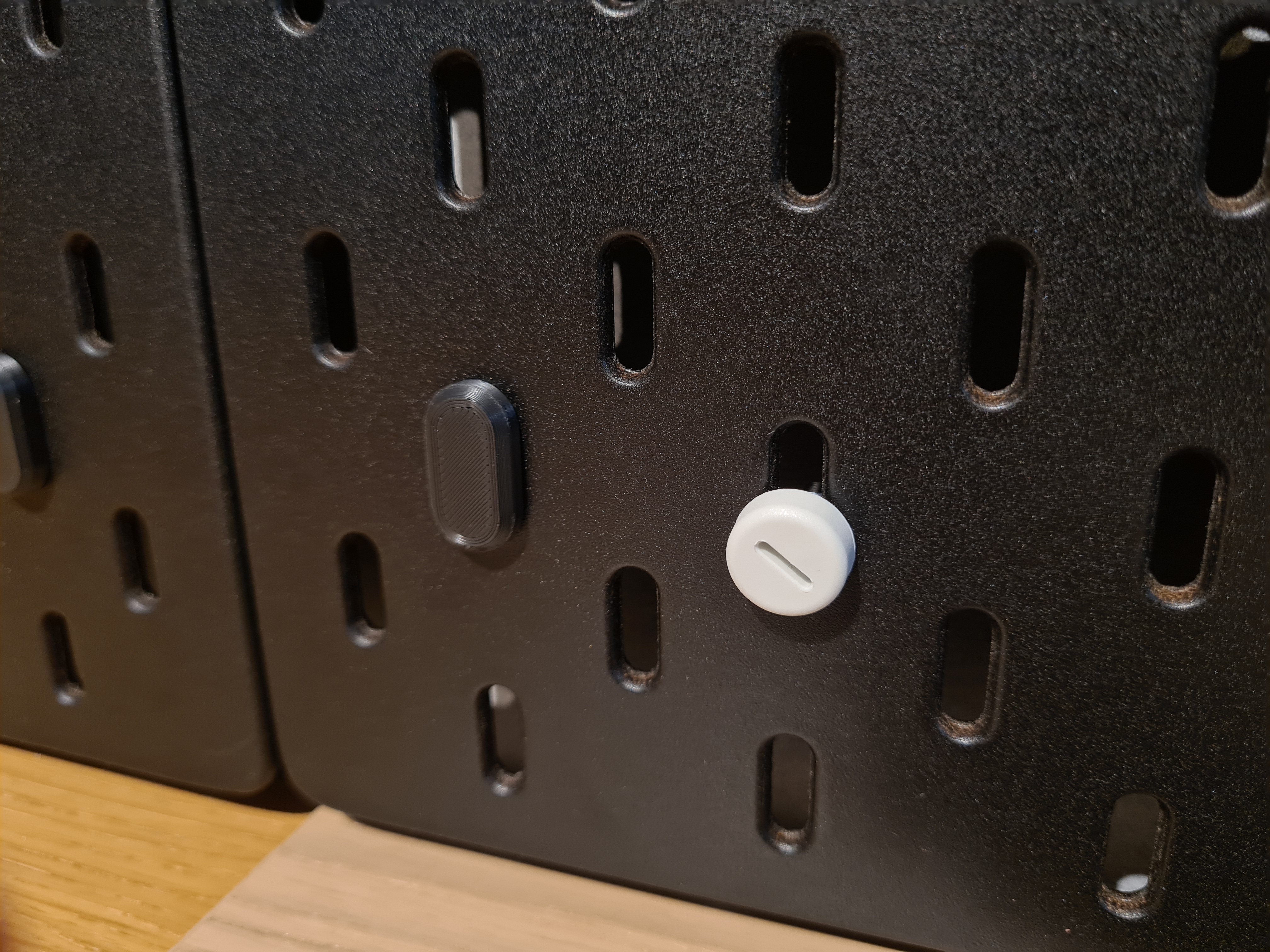

<p>This is a modern and sleek alternative to mounting your IKEA Skådis. (and Uppspel)</p><p>In comparison to the original nubs/screws that came included, these mounts with a countersunk M4 screw in the center of the Skådis holes. Then they can be covered up with a cap that snaps into place and hides the screw. Resulting in a sleek and minimalistic look.</p><p>It also has all of the necessary cutouts to make it compatible with the included spacers/braces. Tolerances are generally between 0,15 mm and 0,30 mm depending on the part.</p><p>Nozzle:&nbsp;</p><ul><li>0,4 mm no need for a smaller one!</li></ul><p>Layer height:&nbsp;</p><ul><li>0,2 mm for the&nbsp;mount is generally good enough. (if not, go smaller)</li><li>0,1 mm for the&nbsp;cap/cover for the best finish and “<i>snap”.</i></li></ul><p>At least 3 perimeter and 100% infill is also recommended.</p><p>&nbsp;</p><p>*Note: Depending on material and other factors the cover clips might break, if you remove it from the mount. In addition the cover can be hard but not impossible to remove.</p>
