Skadis Holder for Stackable Battery Dispenser

prusaprinters

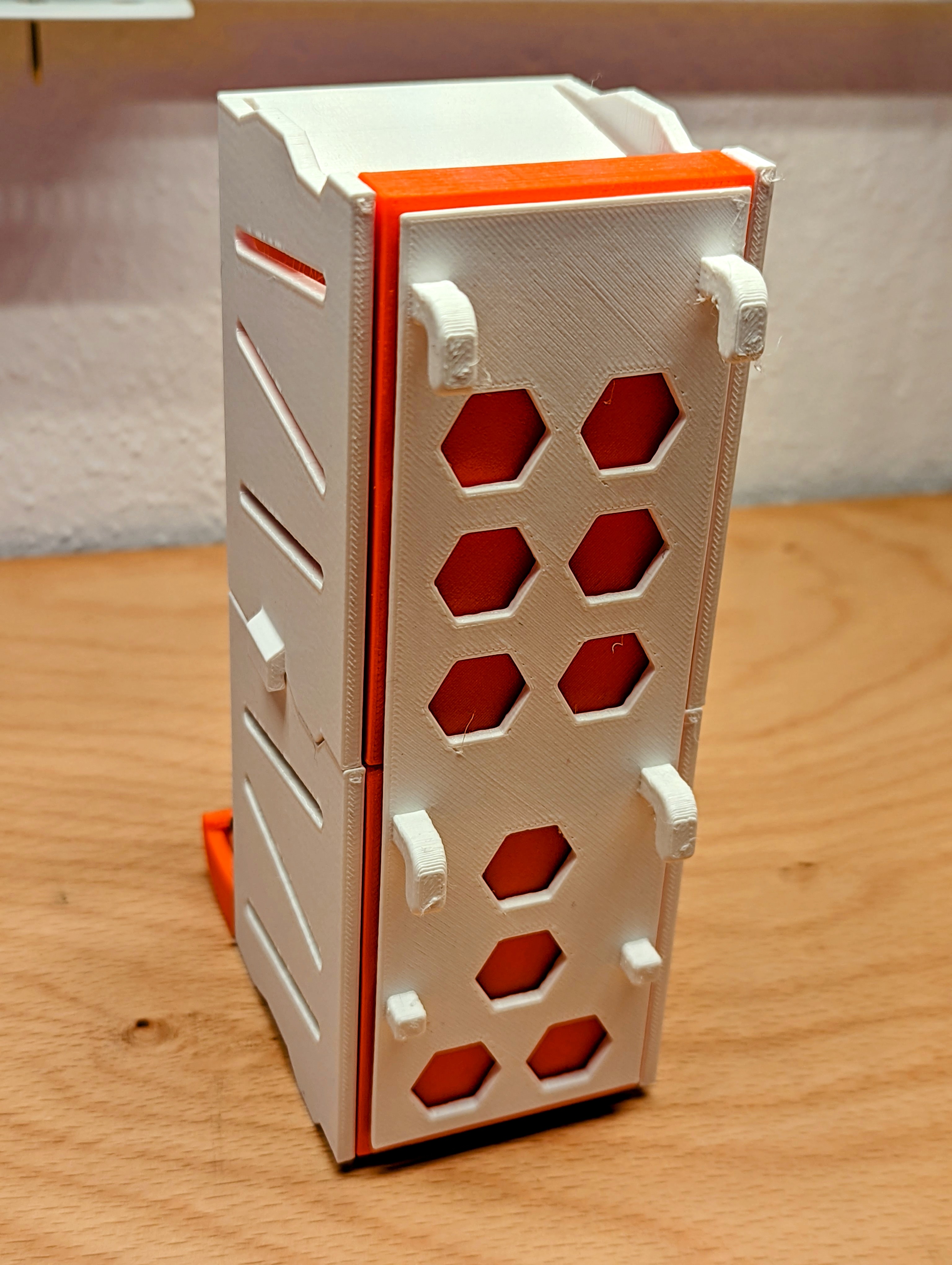

<h3>Description</h3><p>This is an adapter plate for the <a href="https://www.thingiverse.com/thing:4713078">Stackable Battery Holder Improved</a>. This enables to mount the unmodified battery dispenser on a Skadis board. On one side it has Skadis hooks, on the other suitable pegs to hang the battery holder. This enables to take off just the holder quickly (and leaving the adapter plate on the Skadis).</p><p>There are two versions of this. The smaller one fits the battery holder base. The larger adapter plate allows to mount base and extender.</p><p>The Skadis hooks are a tight fit, removing it requires to be careful. First lift the lower part to remove the small pegs, then move the entire plate up. Be careful when dislodging the hooks from the board.</p><h3>Printing Instructions</h3><p>The print itself is easy, but it requires a little bit of patience to get the supports off. My recommendation is to place the object onto the pegs (flip it around). This requires less supports and prints faster. It is important to print this at 100% infill. The hooks may otherwise not be strong enough to support the weight or remove the plates from the Skadis without damaging them.</p><figure class="table"><table><tbody><tr><td>Printer</td><td>Mk3s+</td></tr><tr><td>Filament</td><td>Prusament PETG</td></tr><tr><td>Infill</td><td>100%</td></tr><tr><td>Supports</td><td>Everywhere</td></tr></tbody></table></figure>
