SK8 linear rail shaft adapter / holder for 2040 aluminium profile

prusaprinters

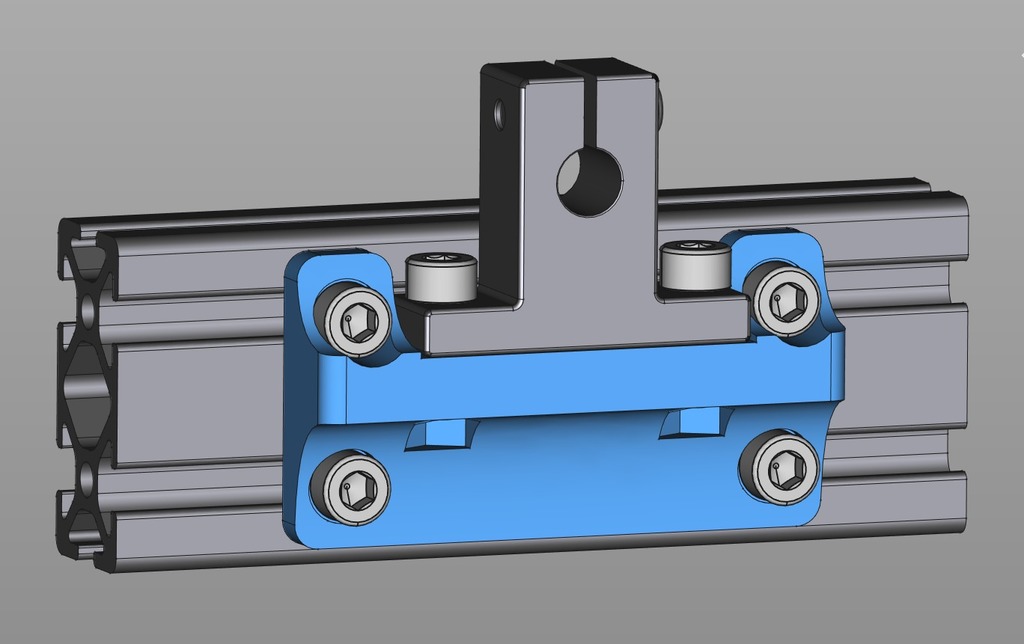

<p>An adapter / holder to mount an SK8 linear rail shaft at the right height on an Anet AM8 / PK8 / PK6 2040 aluminum profile. The linear rail is about 3mm above the upper side of the 2040 extrusion or about 7mm for the center of the rail.</p> <p><a href="https://www.aliexpress.com/item/Hot-sale-1pc-SK8-8mm-linear-bearing-rail-shaft-support-XYZ-Table-CNC-Router-SH8A/32775746125.html">SK8 linear rail shaft used</a></p> <p>The 2040 profile is Nut 5 and all bolts and nuts are M5.</p> <p>FreeCad 0.18 file attached.</p> <h3>Print Settings</h3> <p><strong>Printer:</strong></p> <p>Anet A8</p> <p class="detail-setting rafts"><strong>Rafts: </strong> <div><p>No</p></div> <p><strong>Supports:</strong></p> <p>No</p> <p class="detail-setting resolution"><strong>Resolution: </strong> <div><p>0.2mm</p></div> <p><strong>Infill:</strong></p> <p>40% cubic</p> <p><strong>Filament:</strong></p> Procatec PETG <p><br/> <p class="detail-setting notes"><strong>Notes: </strong></p> </p><div><p>I printed it with 5 perimeters (0.4mm nozzle) to get the strongest part there where the bolts are tighten. 4 bottom and top layers.</p></div> </p></p> Category: 3D Printer Parts
