Simple Re-Arm Smoothieboard + RAMPS 1.4 mount

prusaprinters

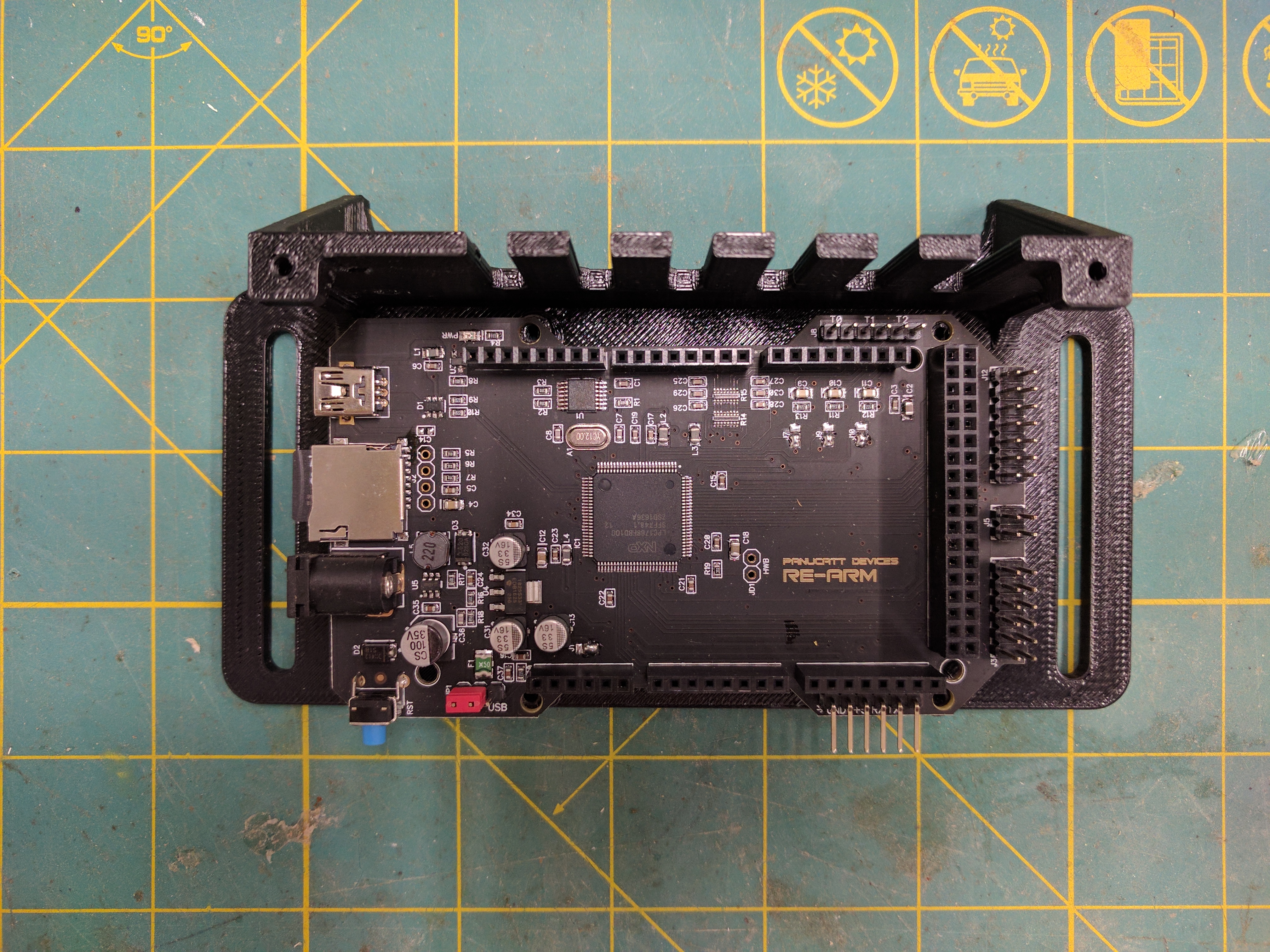

<p>This is a re-mix of my Simple RAMPS 1.4 mount to be compatible with the new Re-Arm Smoothieboard. This mount is beefed up from the original RAMPS 1.4 mount to fix some of the original breaking issues I had.</p> <p>Simple mount that holds a RAMPS 1.4, Re-Arm Smoothieboard, and cooling fans. Slots in side of "case" allow for neat running of stepper motor and other wires to keep them out of the airflow path. The fan mount is designed to allow the use of several different fan options depending upon what you have on hand.</p> <p>There are also two different fan mounts- one short and one tall depending upon how much room you need for wires and how much room there is available in your printer.</p> <p>Mounting holes are sized for M5 allow for attachment to 80-20 extrusions, or whatever else you'd like.</p> <p>Drill and tap fan mount holes for M3. Drill and tap holes in base for whatever size screws you prefer to mount the Smoothieboard.</p> <p>I've included the Solidworks files for remixing.</p> <h3>Print instructions</h3><p>Unassociated tags: re-arm case<br/> Category: 3D Printer Parts</p>
