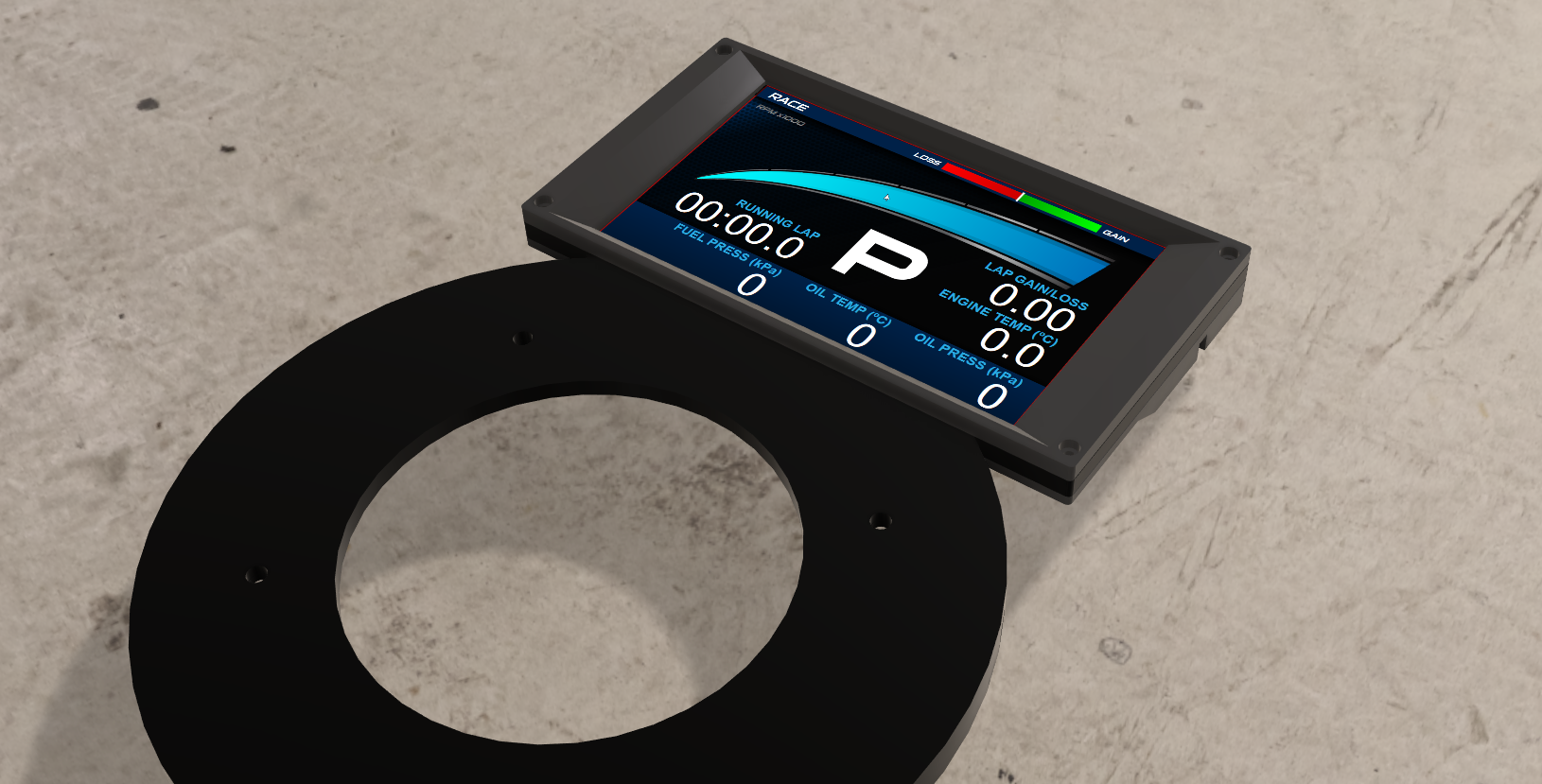

Simhub - Vocore 4.3" Thrustmaster T300/T500/TS-PC Racer/TS-XW Dash

prusaprinters

<p>This is a completely original model, and is the result of 16 different iterations on the design.</p><p>I tried to create the most modular (for future adaptability to other wheels) and compact unit as I possibly could and printable without requiring any supports. &nbsp;I hope you like it.</p><p>&nbsp;</p><p>Description of the parts to be printed:</p><ul><li>Facia - this is a beauty bezel that goes in front of your display</li><li>ThrustmasterMountHousing - this mounts to your Thrustmaster wheel (requires removal of original coweling - 4 screws)</li><li>Spacer - this drops in the side of your lcd display and stops it moving left to right</li><li>Rear cover - this goes on the back of the unit.</li><li>Rear cable bracket - this protects and covers the circuitry and has a cut out for a USB port.</li></ul><p>Parts required:</p><ul><li>VOCORE 4.3" LCD Display &amp; Micro USB cable (purchased from vocore.io)</li><li>2 x M2*16 Screws (affix to the bottom of the unit)</li><li>2 x M2*18 Screws (affix to the top of the unit)</li></ul><p>Software required:</p><ul><li>Simhub Dash (Free)</li></ul><p>Print settings:</p><ul><li>20% infill, PETG, 0.15mm.</li></ul><p>&nbsp;</p><p>Please enjoy, and let me know how your print turns out (better yet post a Make).</p>
