Sigma 100-400 E-mount Tripod clamp
prusaprinters

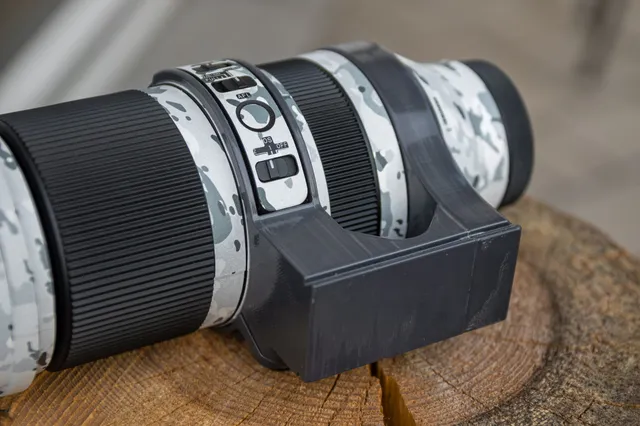

The original Tripod clamp was just too expensive so my friend and I designed our own 3d printable mount that is as sturdy and rigid as the original one. The hole thing is ArcaSwiss compatible as well. It is made up of 2 parts for better printability which you must glue together afterwards. I printed it with ASA so I could vapor-smooth it with aceton for better looks. Then just melt in the M4 threaded insert, cut the thread of the knurled screw to about 10mm in length and mount it carefully to your lens (The tolerances are pretty tight to ensure a good fit). Hardware requiered:1x M4 threaded insert (https://www.cnckitchen.com/shop#!/Gewindeeinsatz-threaded-insert-M4-Short-50-Stk-pcs/p/431135718/category=0 or similar) 1x M4 knurled screw (https://www.amazon.de/dp/B06XYBRR51/ref=twister_B06Y15HW7Z?_encoding=UTF8&psc=1 or similar)Printer settings:Filament: PETG/ASA/ABS/PA etc. (don´t use PLA it´s too soft if it gets hot)4 wall lines20% gyroid infill0.2/0.25mm layer height (0.4mm nozzle)support is mandatory for TripodClamp (1).obj
